HOW TO INSTALL YOUR CR45 MOUNT
Download PDF Install Instructions
DownloadTOOLS
5/32” Allen
STEP 1

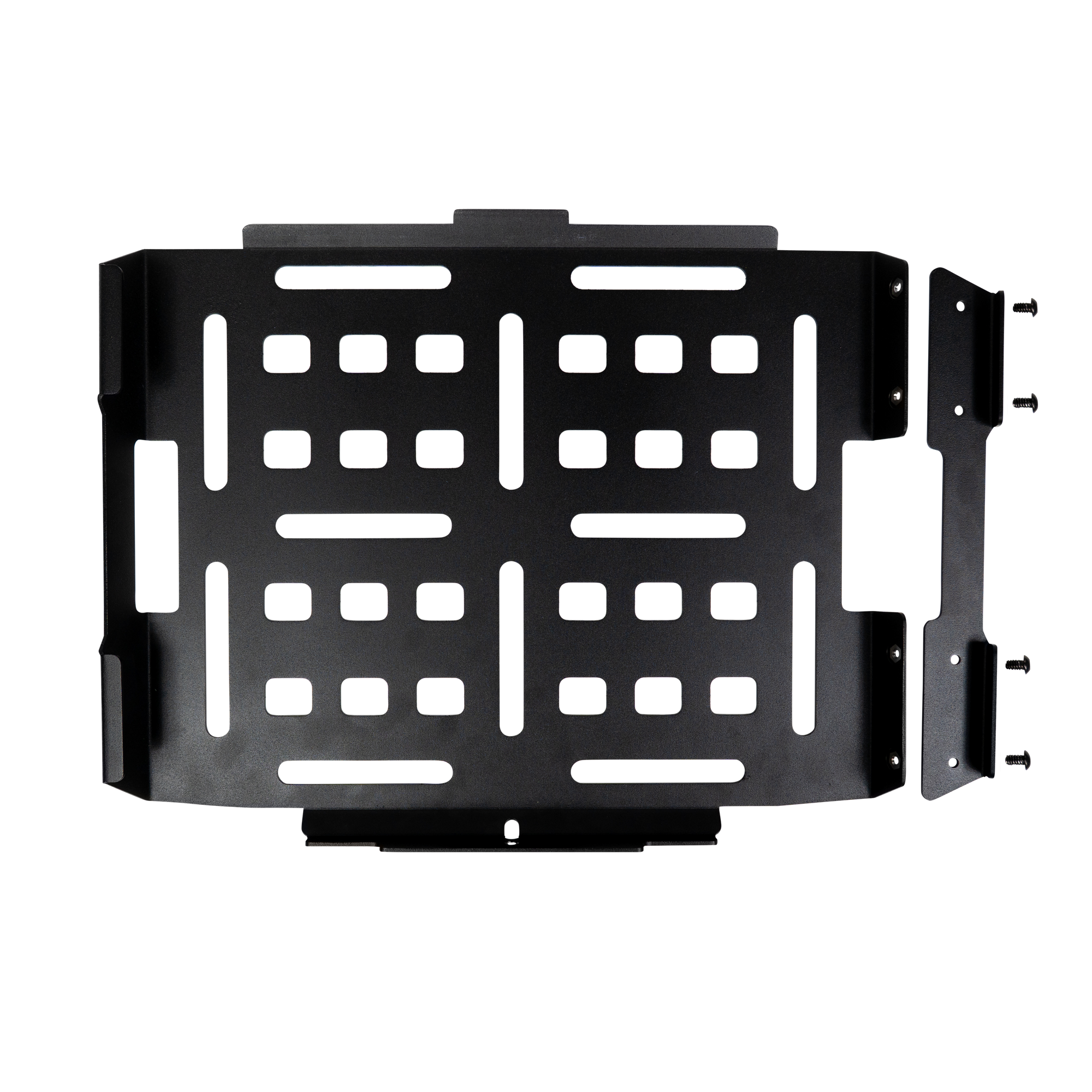

Unbolt the locking plate from the base plate of the mount using a 5/32 hex key. Place the bolts and locking plate to side.
STEP 2
Slide the Pelican Crate into the clamps on the base plate.
(This is designed to be a tight fit so it may need some pressure to fit together).
STEP 3

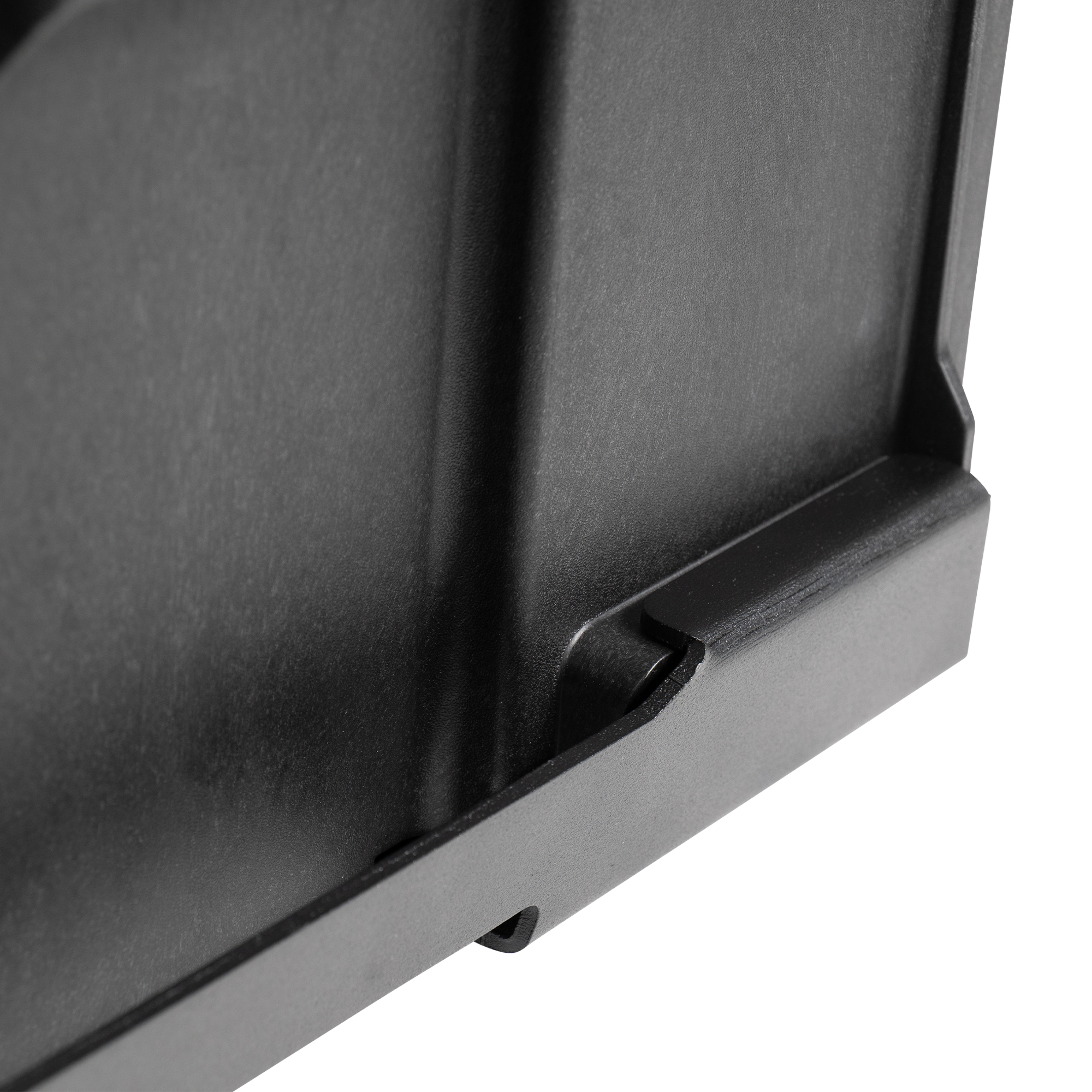

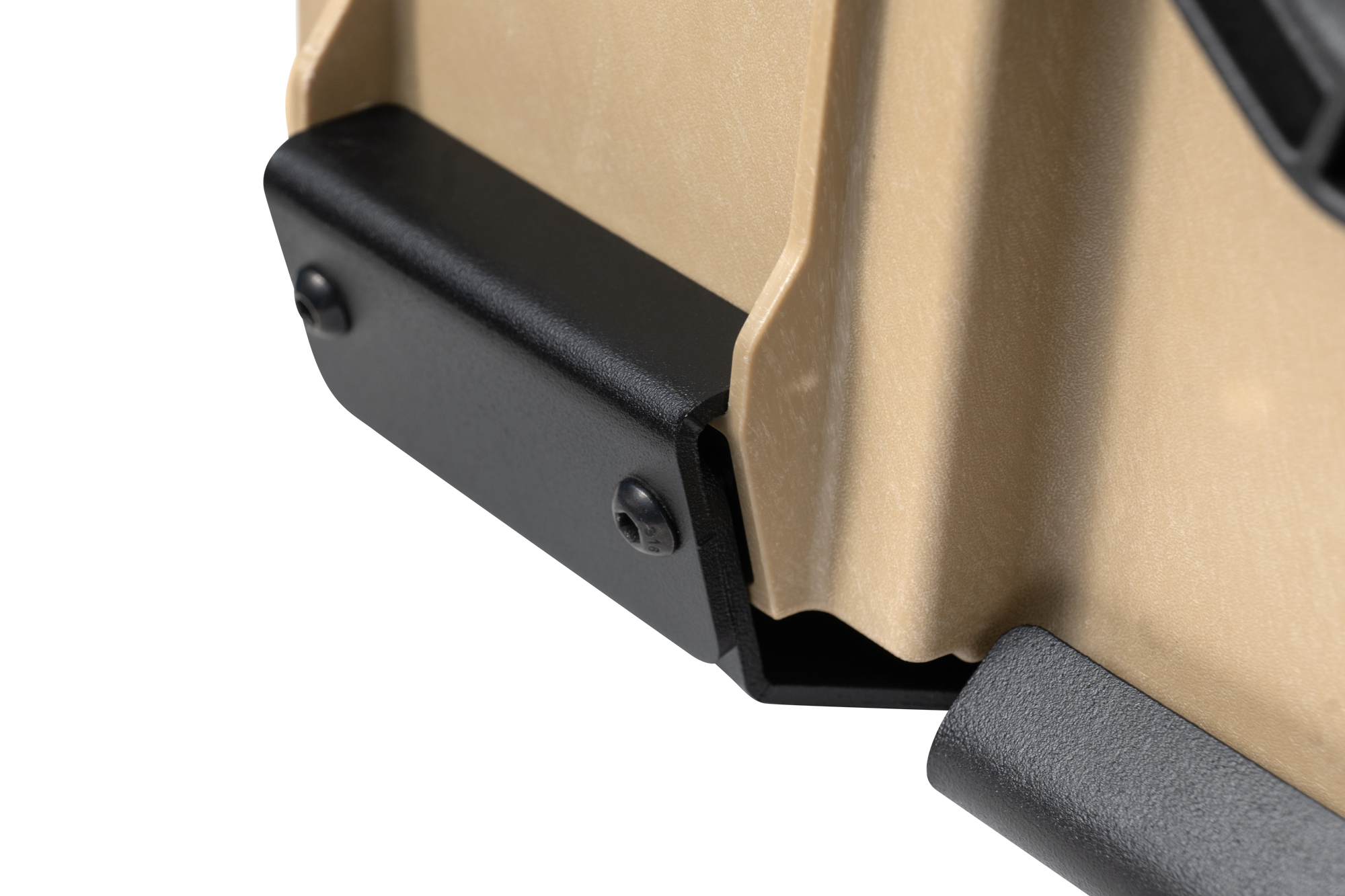

Slide the locking plate onto the lip of the Crate 45 Case.
(Again, this is designed to be a tight fit so it may need some pressure to fit together).
STEP 4

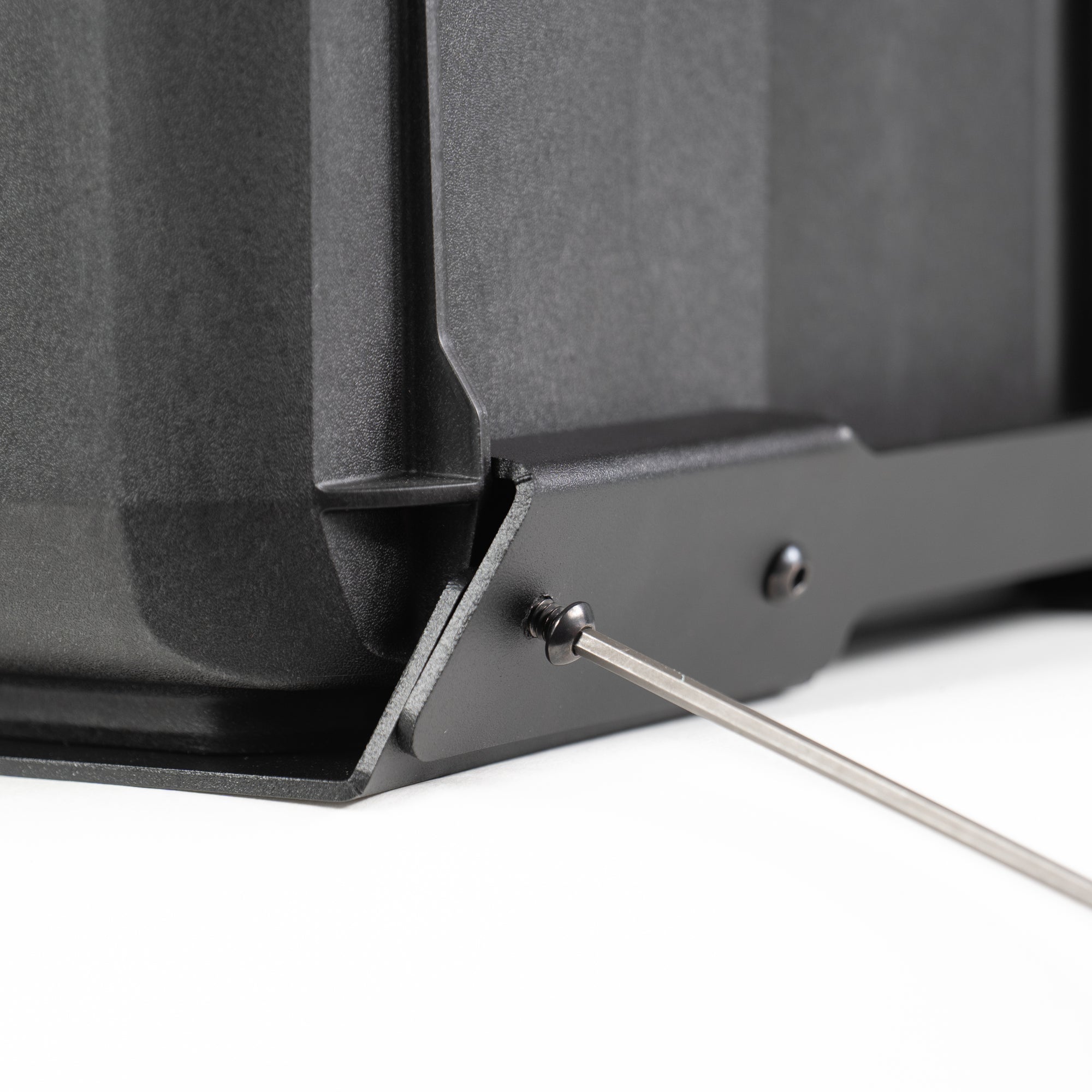

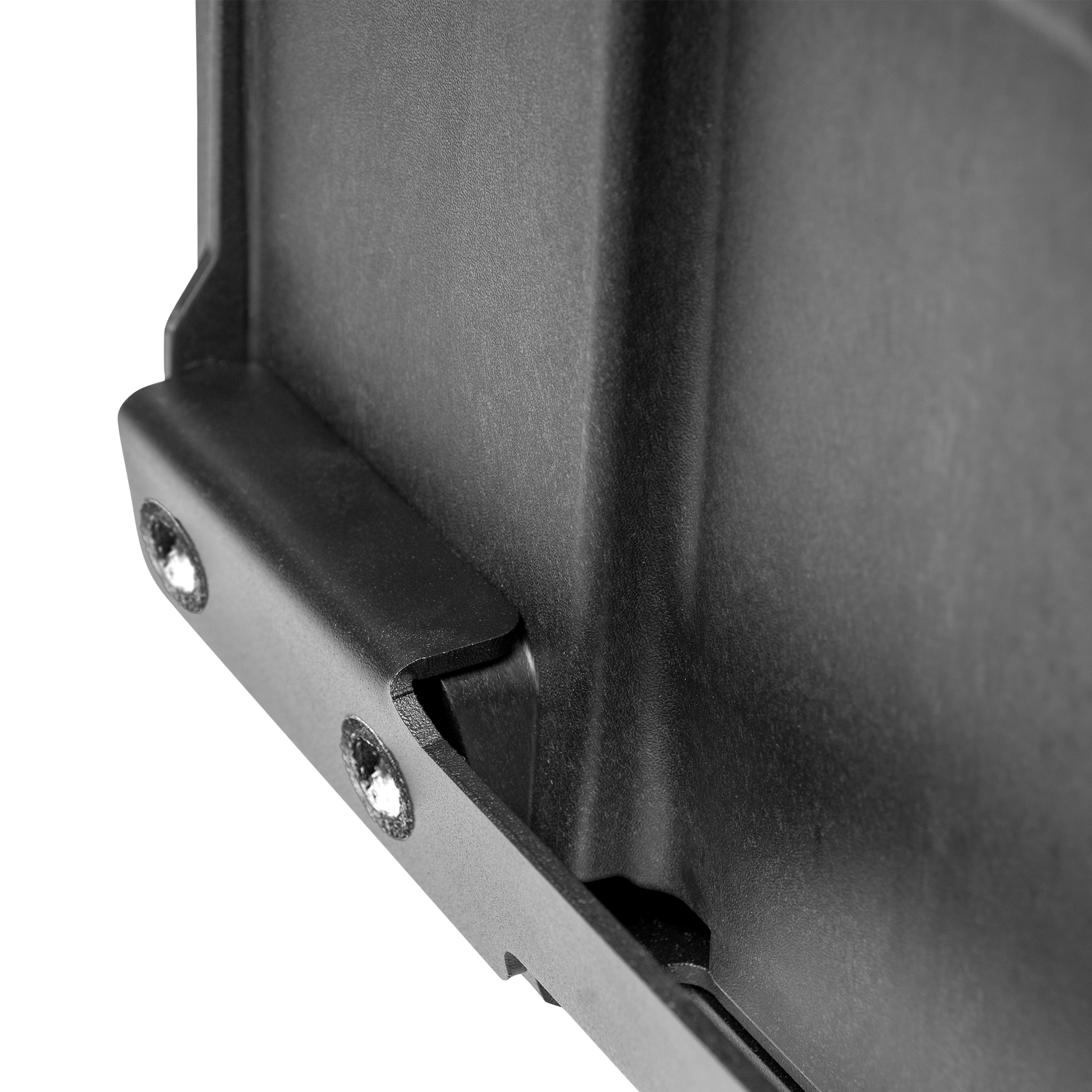

Using the 5/32 hex key mount the locking plate to the base plate.
(The locking plate will take some pressure to mount, use a screwdriver to put in the opposite bolt hole and help align, if needed you can also use a clamp to help pull the plates together).
COMPLETE

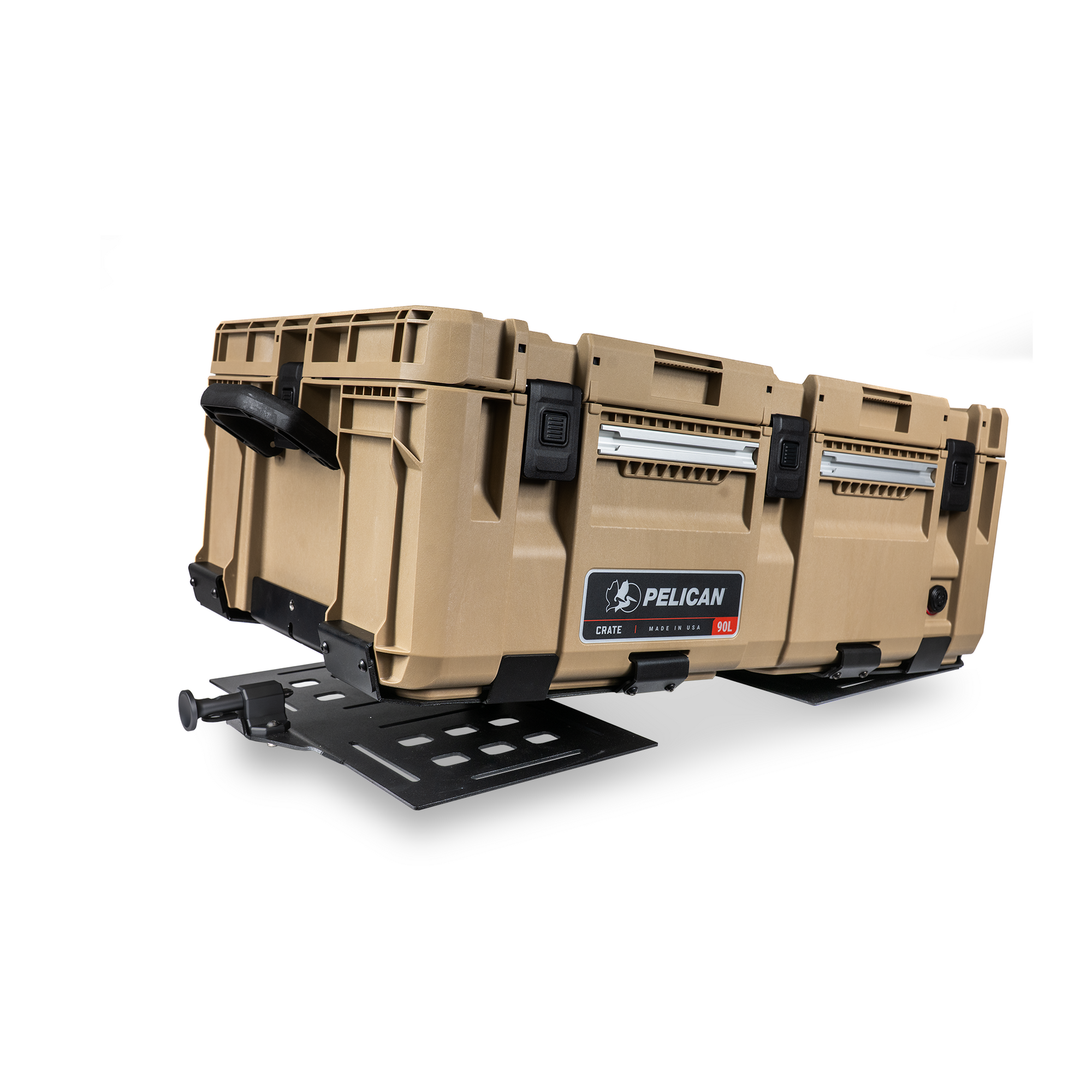

HOW TO INSTALL YOUR CR90 MOUNT
Download PDF Install Instructions
DownloadSTEP 1

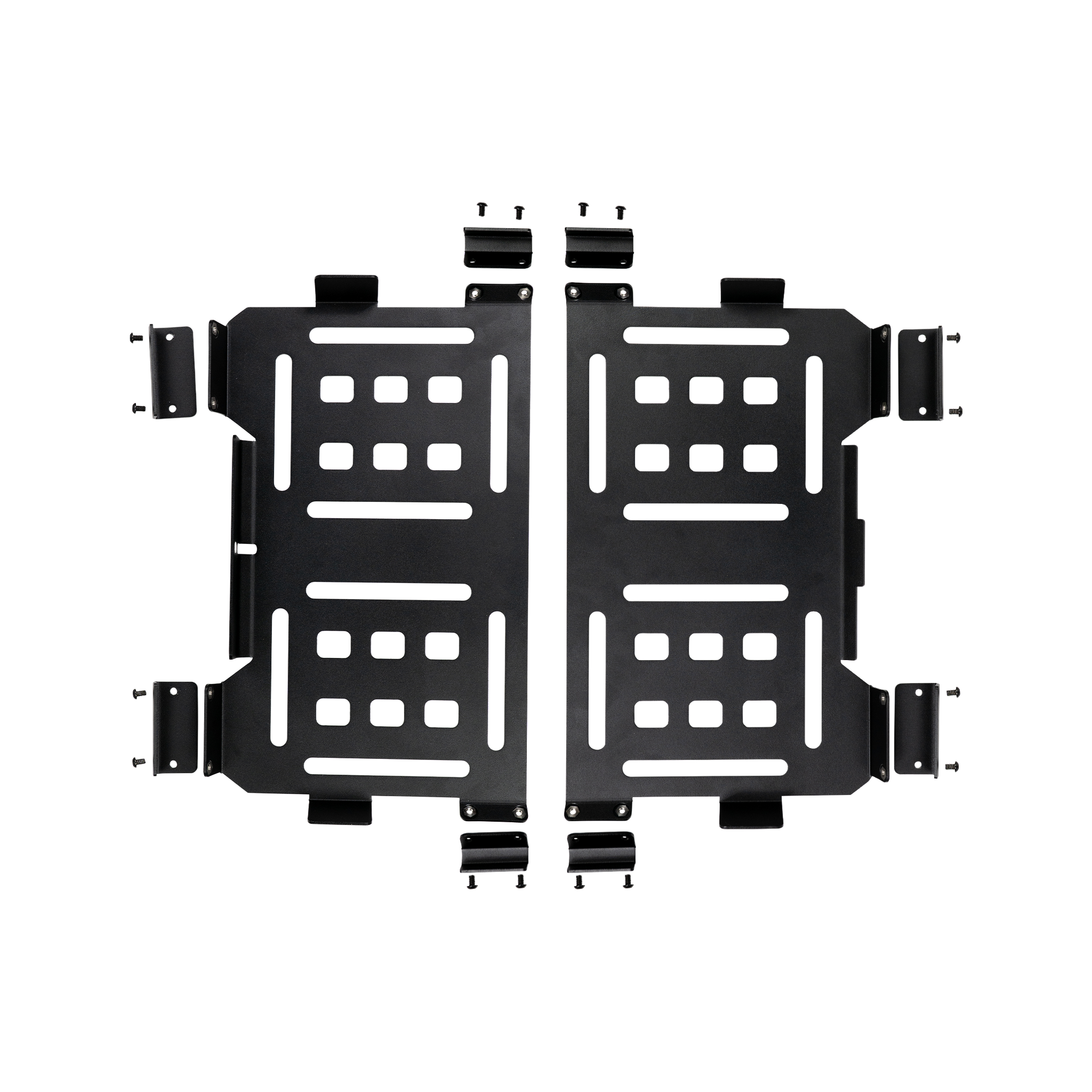

Unbolt the locking clamps from the base plate of the mount using a 5/32 hex key. Place the bolts and locking clamps to side.
STEP 2

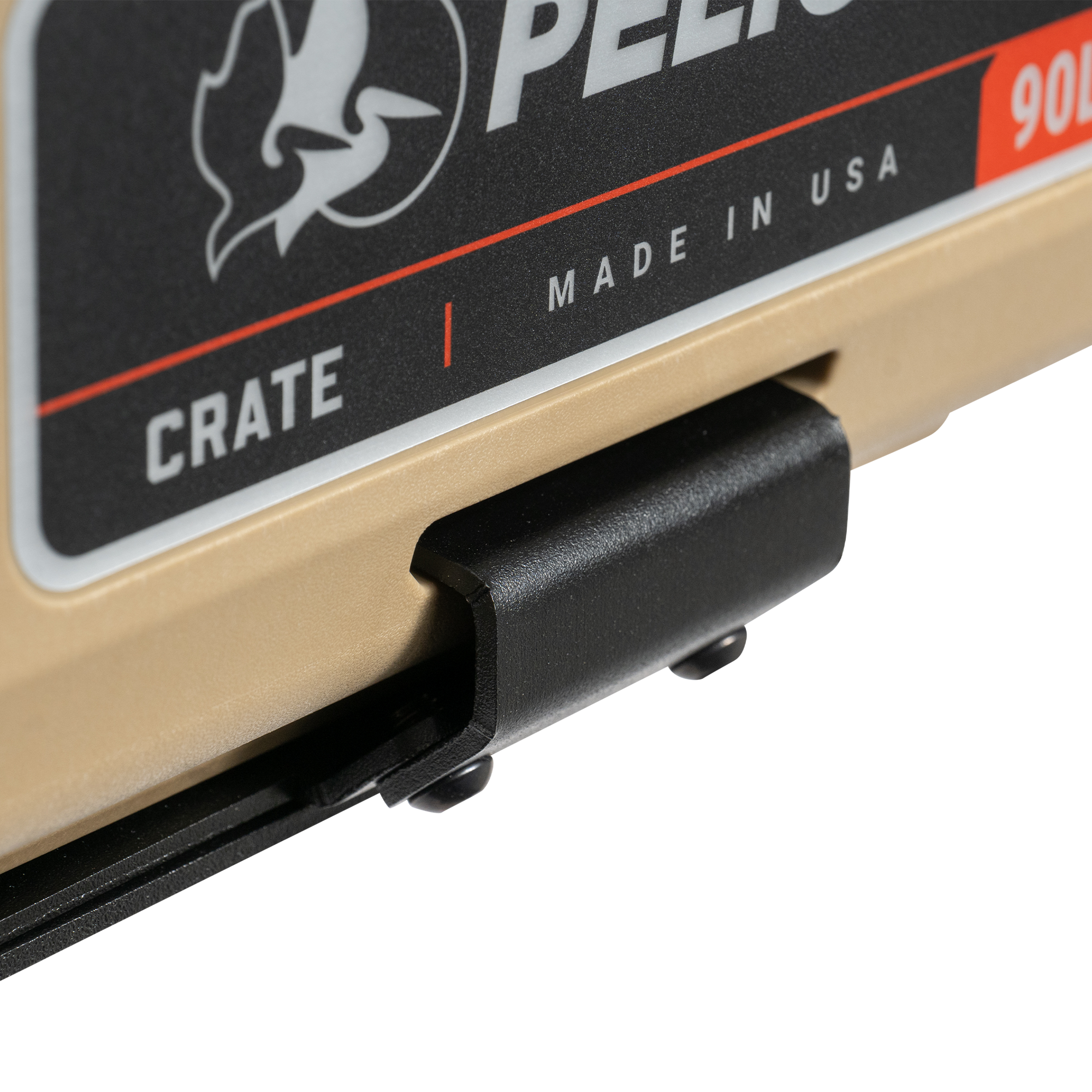

Place the locking clamps on the side slots and screw in the bolts with a 5/32 hex key. (You may need to use a screwdriver to put in the opposite bolt hole and help align).
STEP 3
Place the locking clamps on the front and screw in the bolts with a 5/32 hex key. ( This is designed to be a tight fit so it may need some pressure to fit together. You may need to use a screwdriver to put in the opposite bolt hole and help align, if needed you can also use a clamp to help pull the plates together).
STEP 4
Repeat steps 2 & 3 for the rear plate.
COMPLETE
