What Cases Fit Which Mount (Not a comprehensive list)

  • Pelican Protector 1200
  • Condition1 #185

This is not a comprehensive list, there are hundreds of items that can work in a Mount. Remember, they are universal, this is just a base list to guide you.

  • Pelican Protector 1400
  • Apache 2800
  • Dark Angel Medical Kit

This is not a comprehensive list, there are hundreds of items that can work in a Mount. Remember, they are universal, this is just a base list to guide you.

  • Pelican Air 1525
  • Pelican Protector 1450
  • Condition1 #179
  • Condition1 #801
  • Condition1 #997

This is not a comprehensive list, there are hundreds of items that can work in a Mount. Remember, they are universal, this is just a base list to guide you.

  • Pelican Air 1555 (Perfect Fit)
  • Pelican Vault V300
  • Pelican 1557 (Need spacers to clear ribs on bottom)
  • Pelican 1500
  • Pelican Protector 1520
  • Apache 4800

This is not a comprehensive list, there are hundreds of items that can work in a Mount. Remember, they are universal, this is just a base list to guide you.

  • Pelican Protector 1700
  • Pelican Air 1605
  • Pelican Cargo BX135
  • Pelican Protector 1720 (plus Stabilizers)
  • Pelican Protector 1750 (plus Stabilizers)
  • Condition1 #1229 (plus Stabilizers)
  • Condition1 #2191 (plus Stabilizers)
  • Condition1 #2106 (plus Stabilizers)

This is not a comprehensive list, there are hundreds of items that can work in a Mount. Remember, they are universal, this is just a base list to guide you.

  • Pelican V700
  • Pelican Protector 1600
  • Pelican Protector 1770 (plus Stabilizers)
  • Condition1 #024 (XXL Mount)

This is not a comprehensive list, there are hundreds of items that can work in a Mount. Remember, they are universal, this is just a base list to guide you.

  • Pelican Vault V600
  • Pelican Vault 730

This is not a comprehensive list, there are hundreds of items that can work in a Mount. Remember, they are universal, this is just a base list to guide you.

How do you Measure?

Not all gear is created equal… Our Mounts were designed to be as universal as possible, will they fit everything perfectly? No, that's not the point… We will guide you and educate you on correctly measuring your cases or gear to get the proper sized Mount.

How to Measure

Terminology we will use-

Handle to Hinge: A measurement taken externally on the bottom side of your case or gear; the measurement is taken from the Handle side (Front)  to the Hinge side (Back)

Protrusions: Not all Cases have flat surfaces externally. They have varying ridges, reinforcements, and moldings.

Base Plate: The “Bottom” side of the Mounts. It has the Pin Block, rear lip, and will be bolted to your vehicle, boat, race car, airplane, tank, rocket, etc…

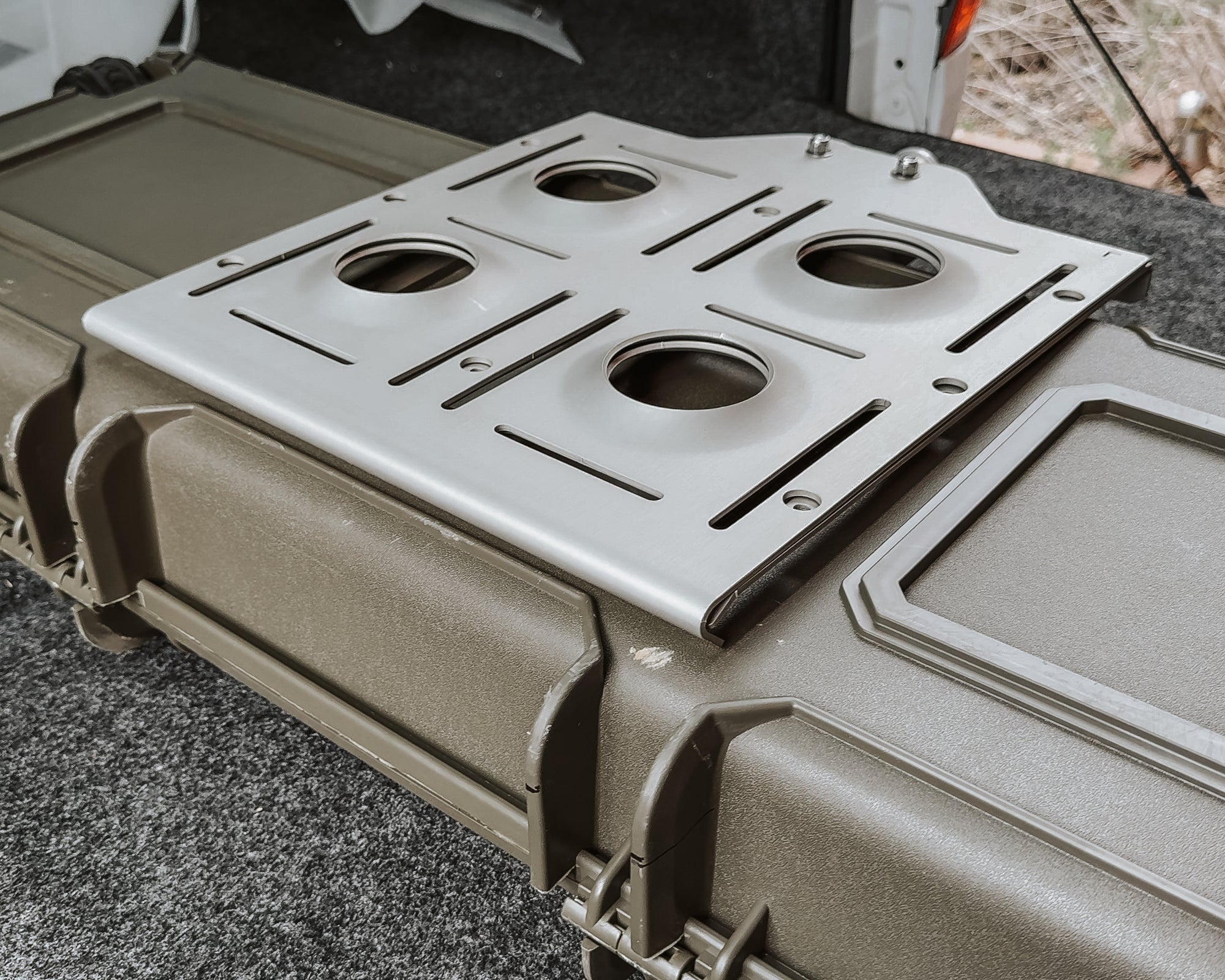

Mount Side Plate: This is the “Top” side Plate. This is the part that has the Detent Pin Guide, Pin Hole, and Internal Plate/Gasket. It attaches to the case, bag, cooler, Starlink Antenna, or whatever else you can dream of…

Pin Block: The removable, adjustable, and mechanical part of our Mounting System.

Internal Plate/Gasket: This internal plate that goes inside of your case, bag, etc… It provides a strong internal aluminum base, gives the gasket a firm surface to seal against, as well as an area to potentially build off of for any creative or custom applications.

 You will need to finalize your choice of gear storage, we recommend doing this first. Once that is completed, it's time to measure… For example purposes, we will use a case.

-Flip your Case upside down.

-Measure externally on the bottom from Handle to Hinge.

-Be aware of any Protrusions

-Determine the physical dimension of the bottom side. Example: Case measurement is 13 ¾” then it will fit a Large Mount 14”

Pro Tips: Different cases have solid plastic protrusions; these can be trimmed or sanded down, providing a tighter and slimmer fitting Mount Plate to the Case.

A general rule we have noticed, most external measurements provided on case dimensions, the Mount will end up being 1 ¼” smaller than the dimension.

For example, Pelican Air 1555 Exterior (L×W×D) 24.76 x 15.46 x 8.24 in (62.9 x 39.3 x 20.9 cm) The handle to hinge measurement is 15.46”, however the physical dimension of the bottom is 13.9” and fits perfectly on our Large Mount 14”

Detailed dimensions are provided in each of the Mounts Photo sections. As always, take your time, double-check, and never hesitate to shoot us a quick message to get clarity.

  • Measuring Tape

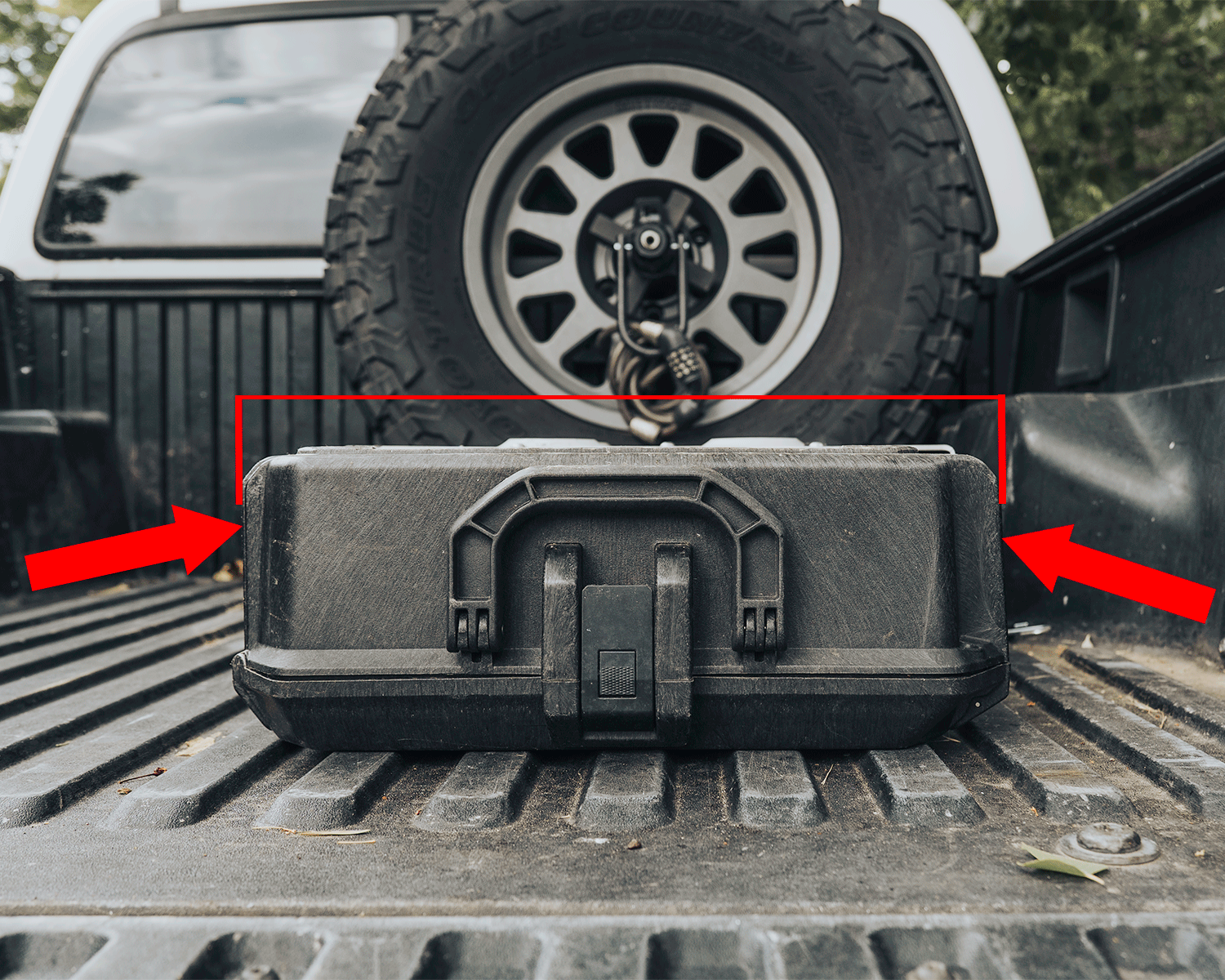

How do you Measure?

-Flip your Case upside down.

-Measure externally on the bottom from Handle to Hinge.

-Be aware of any Protrusions

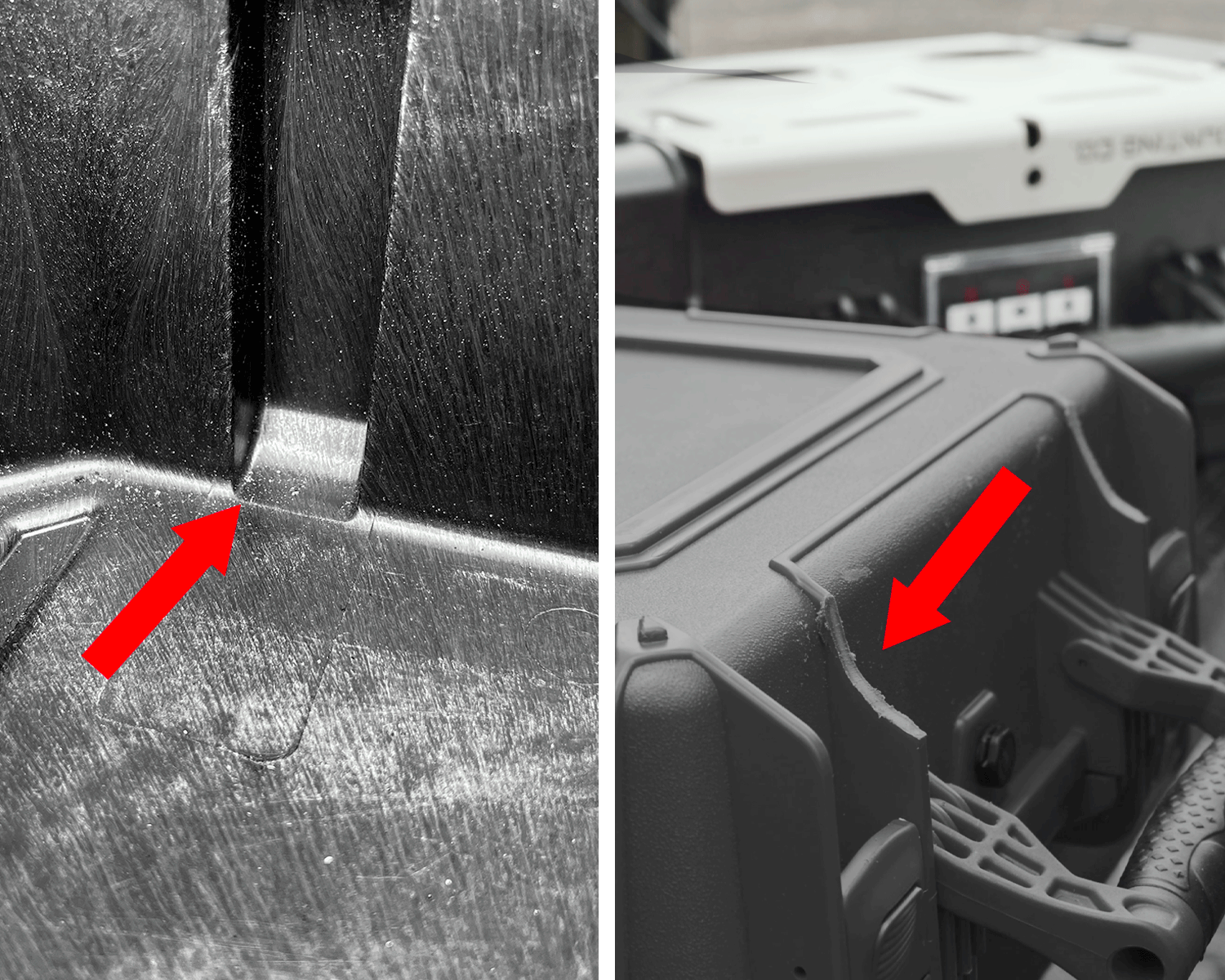

Protrusions

Not all Cases have flat surfaces externally. They have varying ridges, reinforcements, and moldings. By sanding or trimming these you can achieve a tighter fit between the case and mount.

- Some Cases, like the Pelican Vault Series have hollow protrusions that cannot be sanded or trimmed.

- If the Protrusion is solid and has no hollow interior they can be trimmed or sanded.
