EASY ACCESS TO YOUR GEAR
With our patented, secure, self-aligning design, you can be sure that you can access your gear when you need to and keep it secure when you don't.

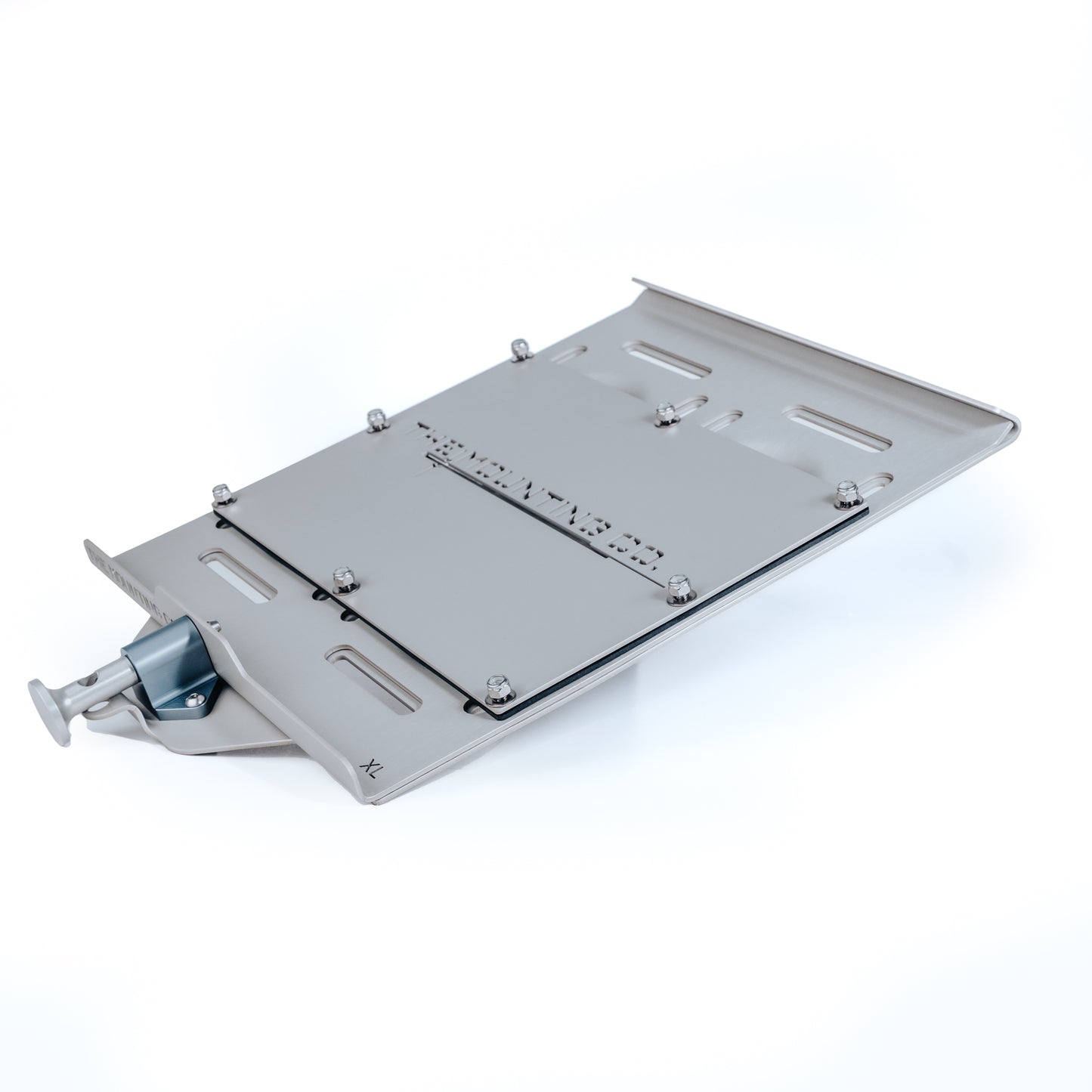

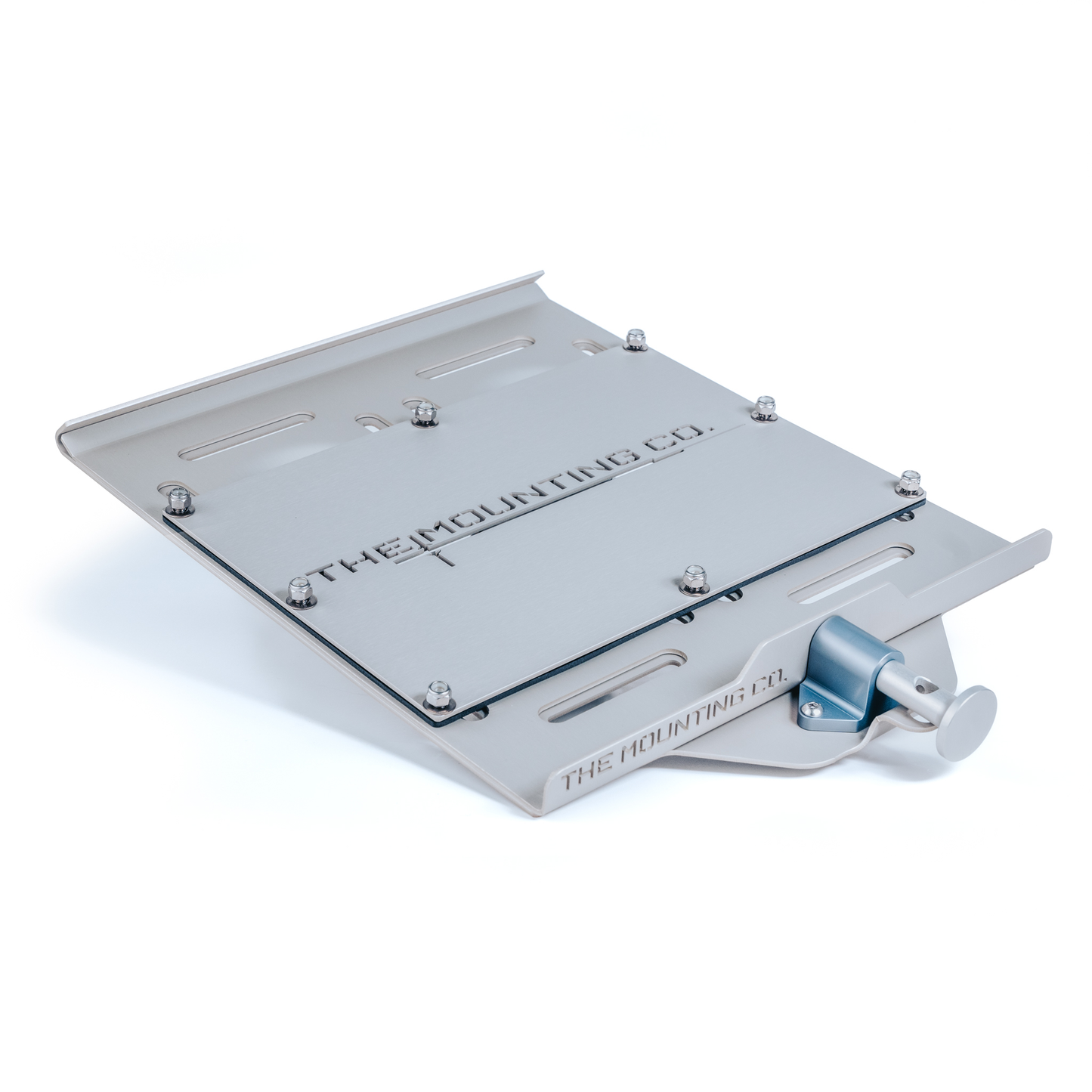

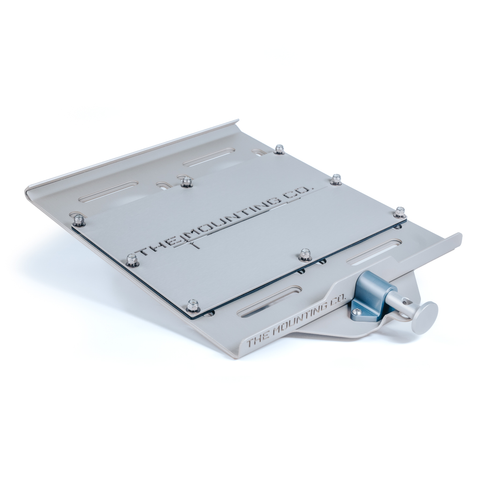

XL MOUNT
THIS MOUNT WILL FIT
Pelican Protector 1700
Pelican Air 1605
Pelican Cargo BX135
Pelican Protector 1720 (plus Stabilizers)
Condition1 #1229 (plus Stabilizers)
Condition1 #2191 (plus Stabilizers)
Condition1 #2106 (plus Stabilizers)
Zarges K470-40810
Zarges K470 -40568
WHAT CAN I MOUNT THIS ON?
Roof racks, Bedracks, Molle Panels, Trucks, SUVs, Trophy Trucks, Boats, Snowmobiles, Airplanes, Helicopters, Tanks…. Anything you can use your imagination on.
HOW DO I MEASURE?
Terminology we will use-
Handle to Hinge: A measurement taken externally on the bottom side of your case or gear; the measurement is taken from the Handle side (Front) to the Hinge side (Back)
Protrusions: Not all Cases have flat surfaces externally. They have varying ridges, reinforcements, and moldings.

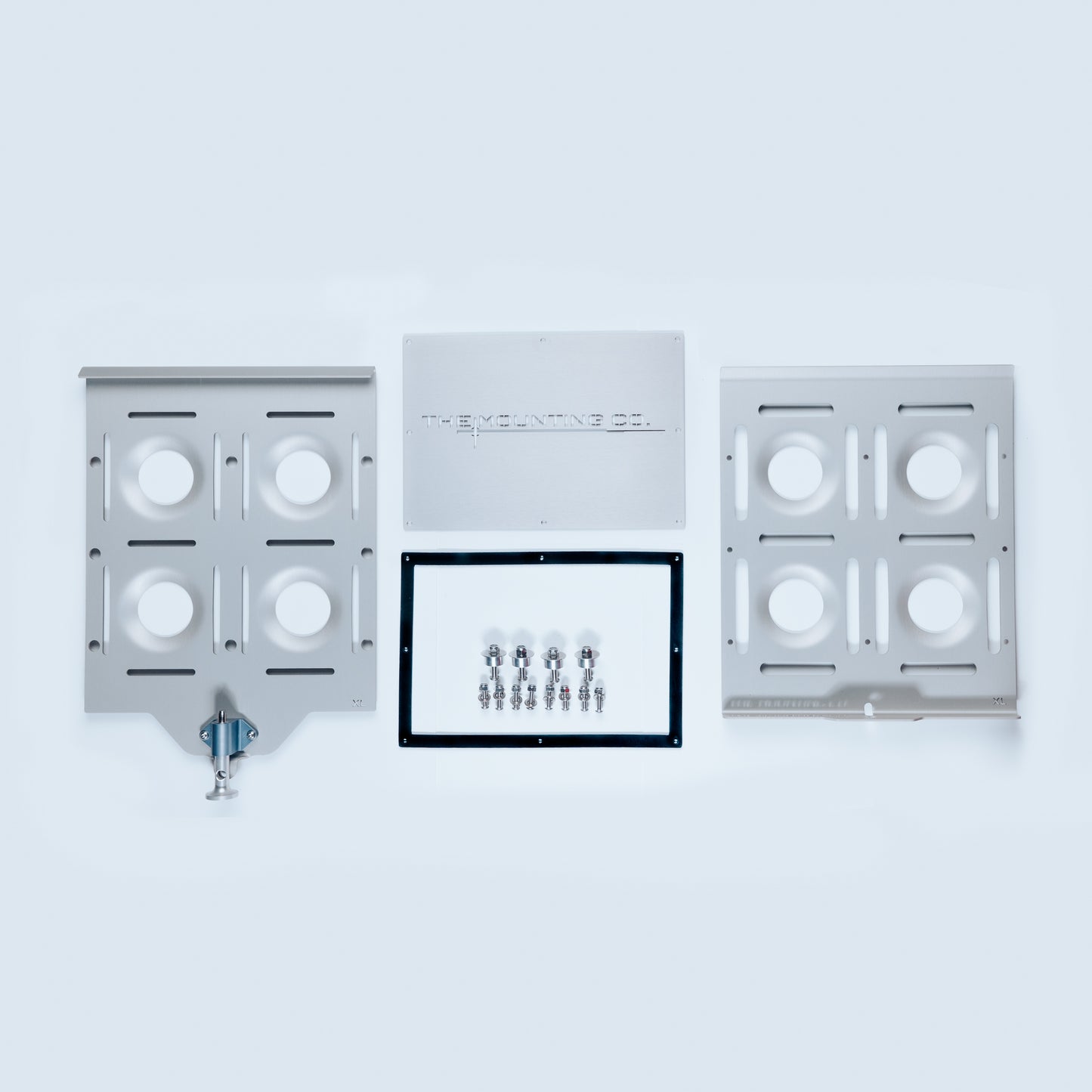

Base Plate: The “Bottom” side of the Mounts. It has the Pin Block, rear lip, and will be bolted to your vehicle, boat, race car, airplane, tank, rocket, etc…

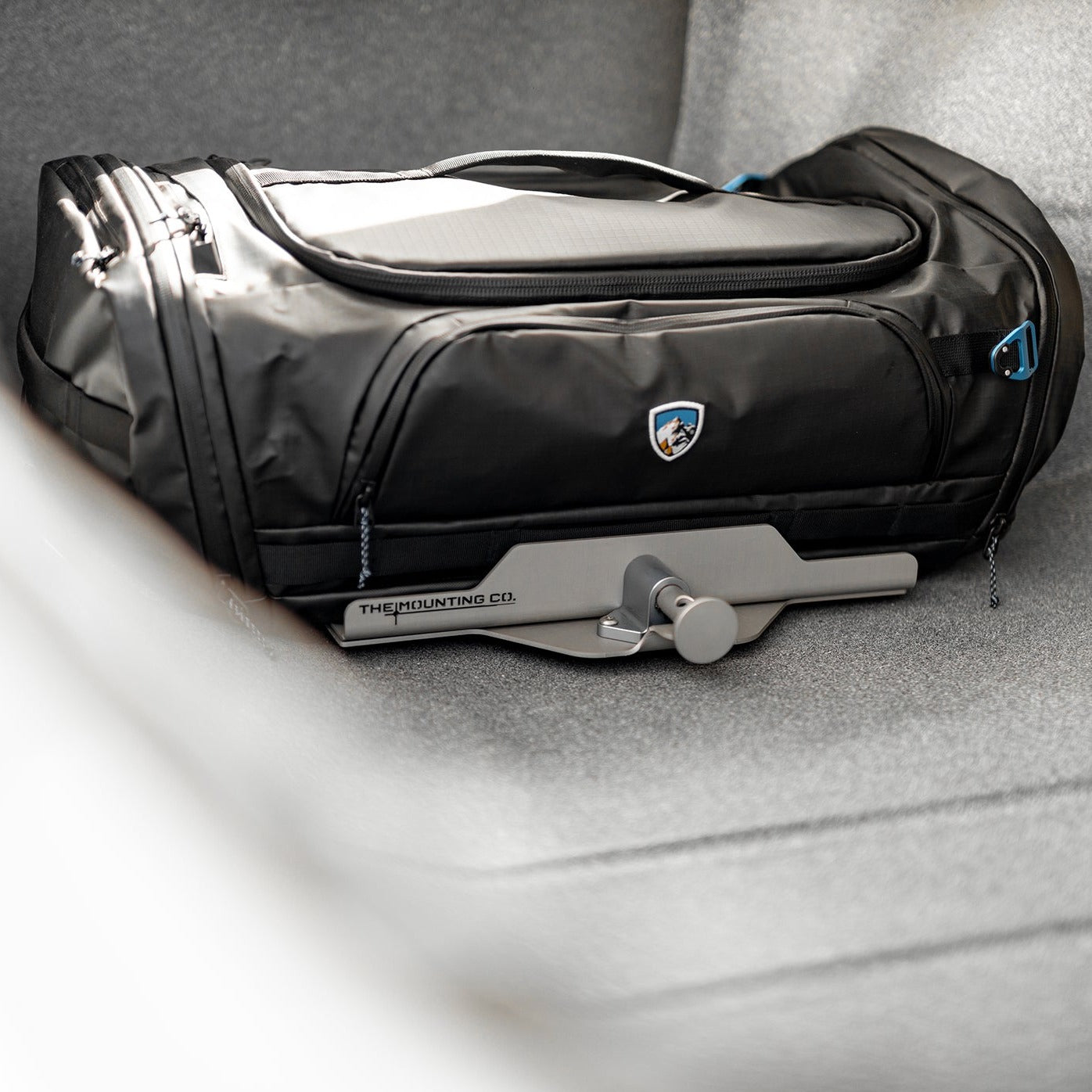

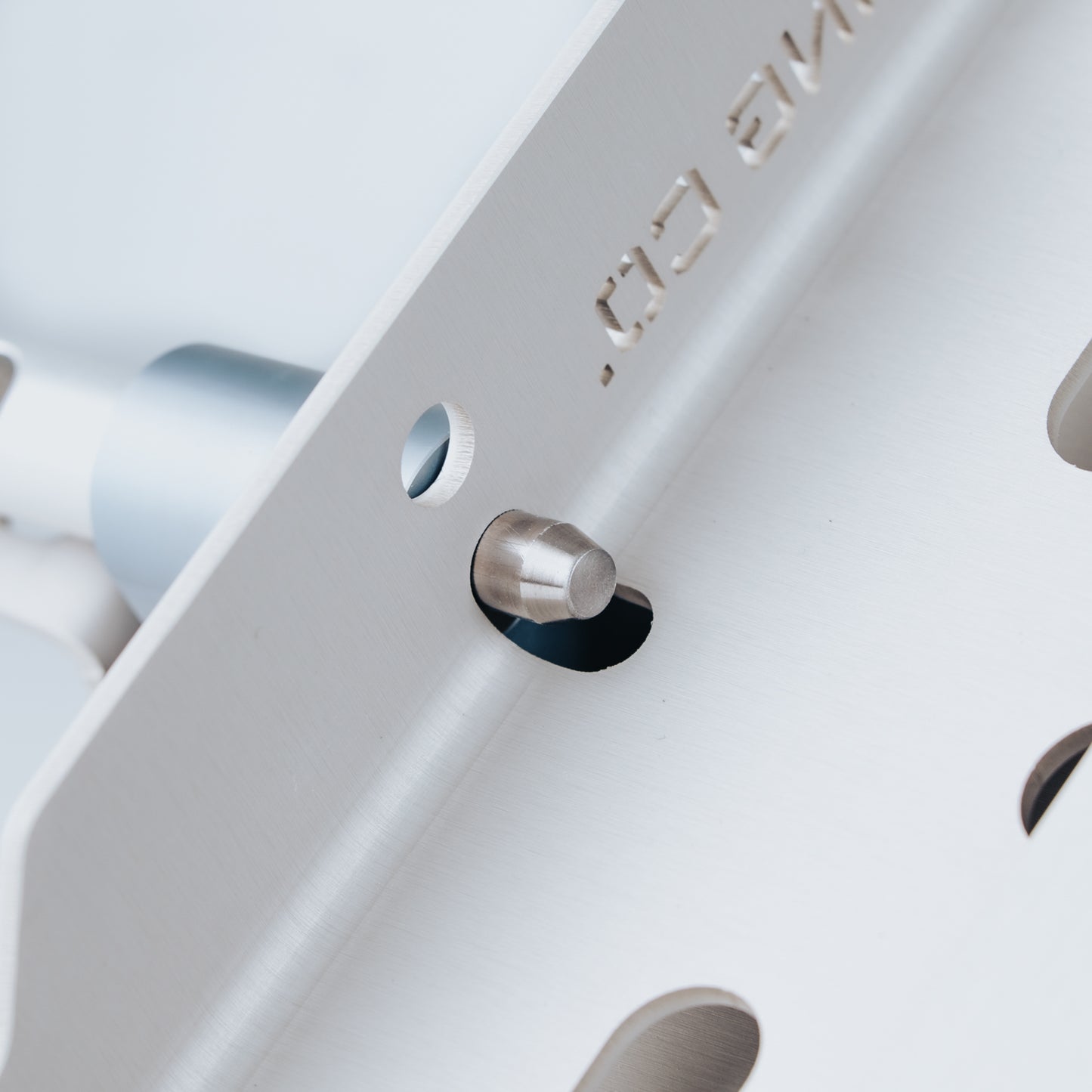

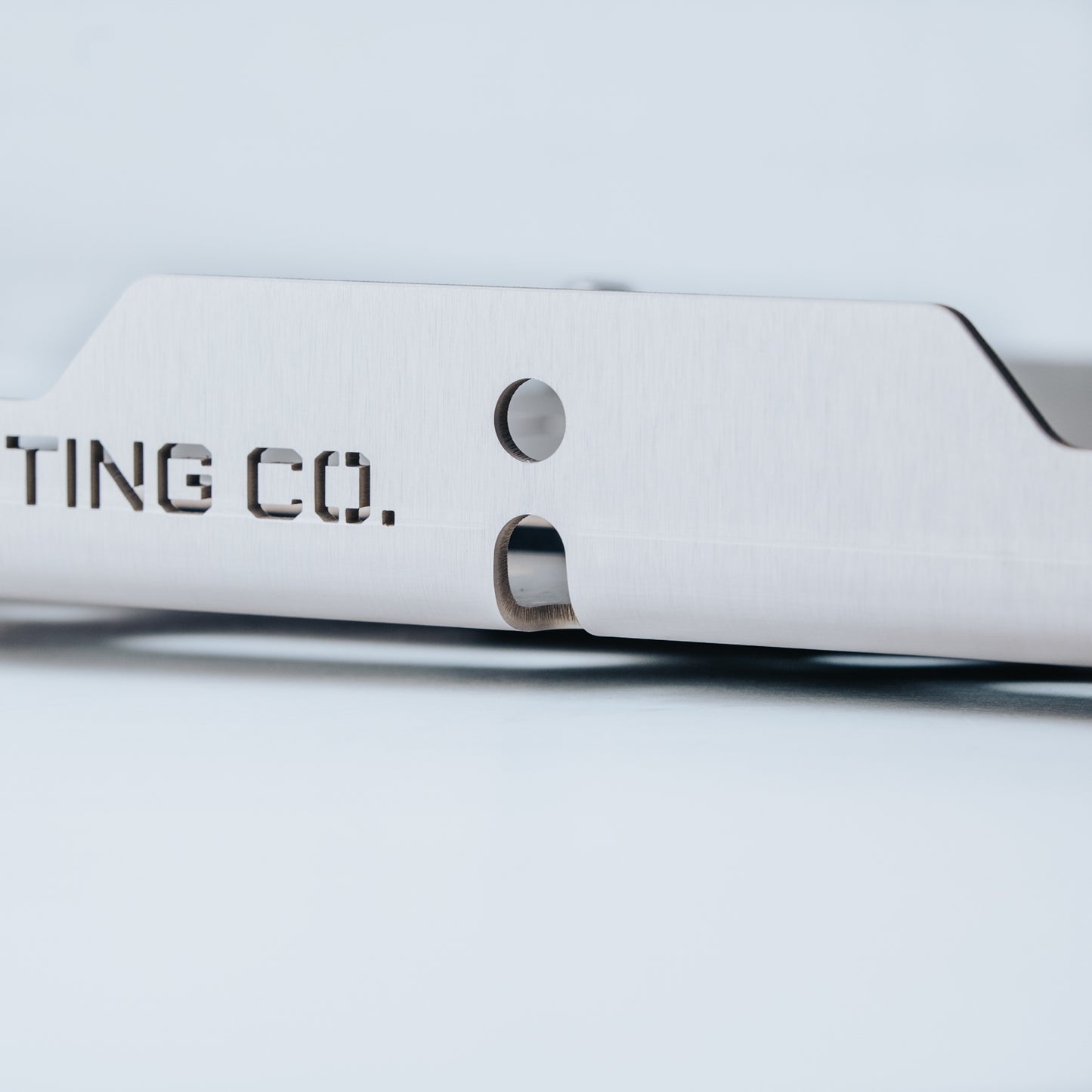

Mount Side Plate: This is the “Top” side Plate. This is the part that has the Detent Pin Guide, Pin Hole, and Internal Plate/Gasket. It attaches to the case, bag, cooler, Starlink Antenna, or whatever else you can dream of…

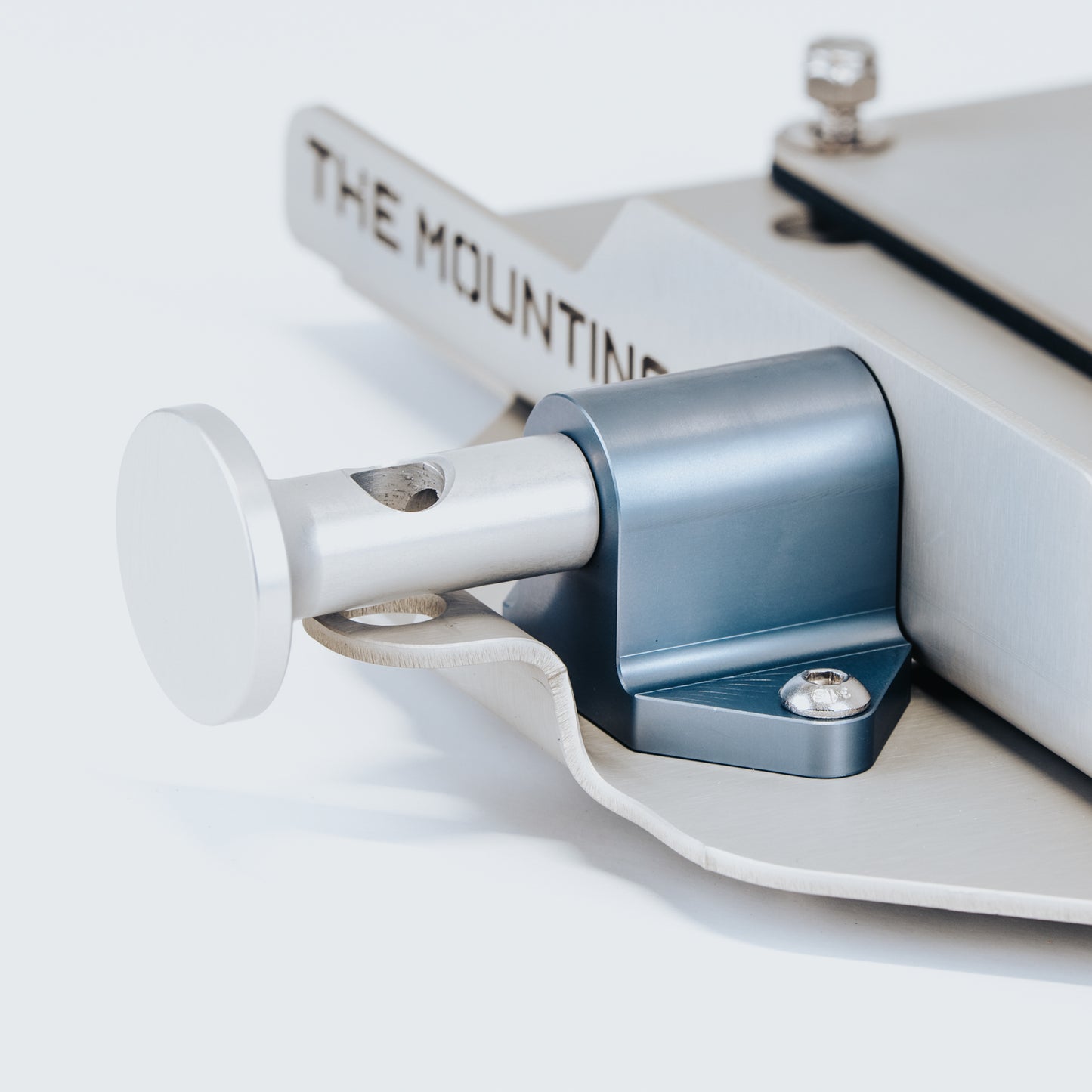

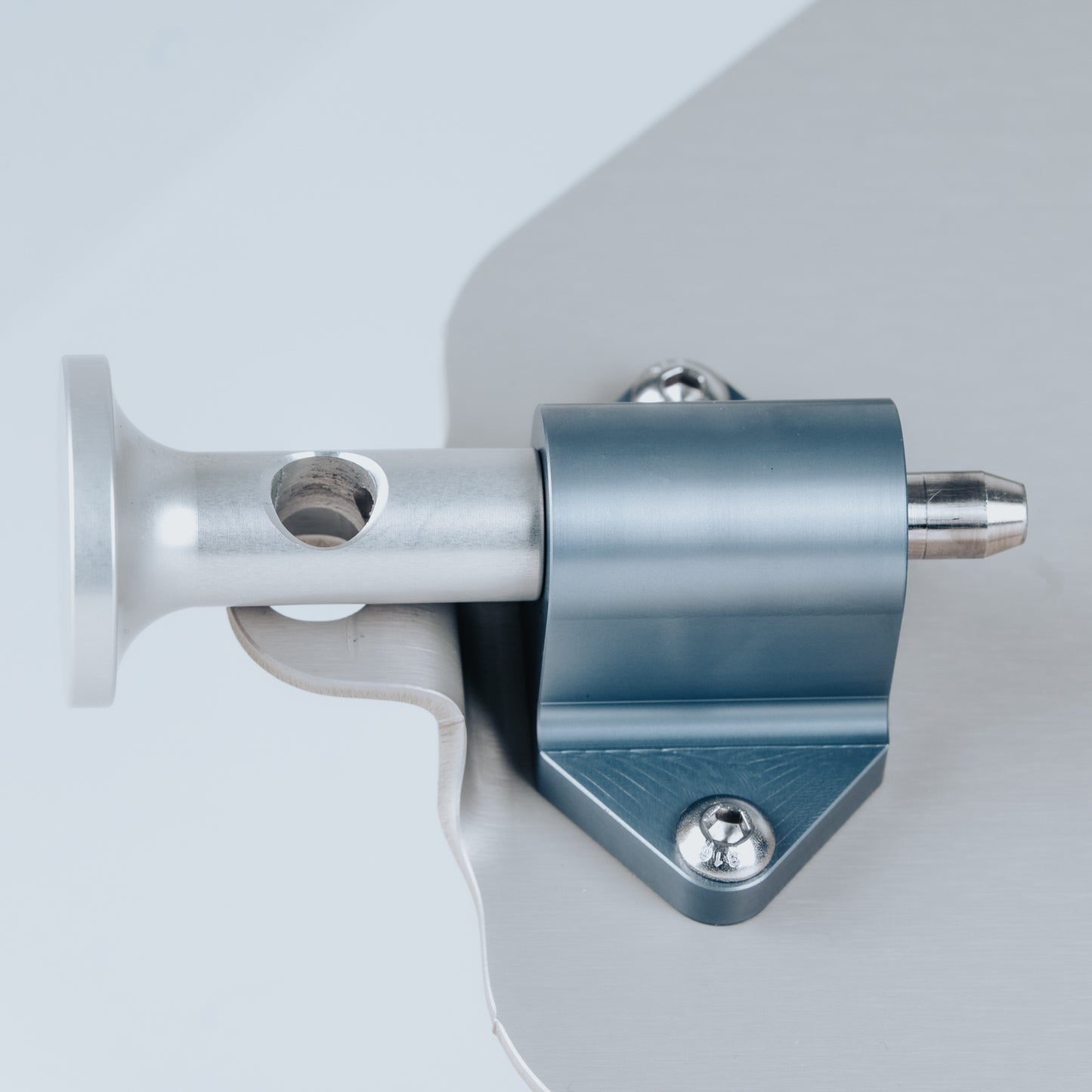

Pin Block: The removable, adjustable, and mechanical part of our Mounting System.

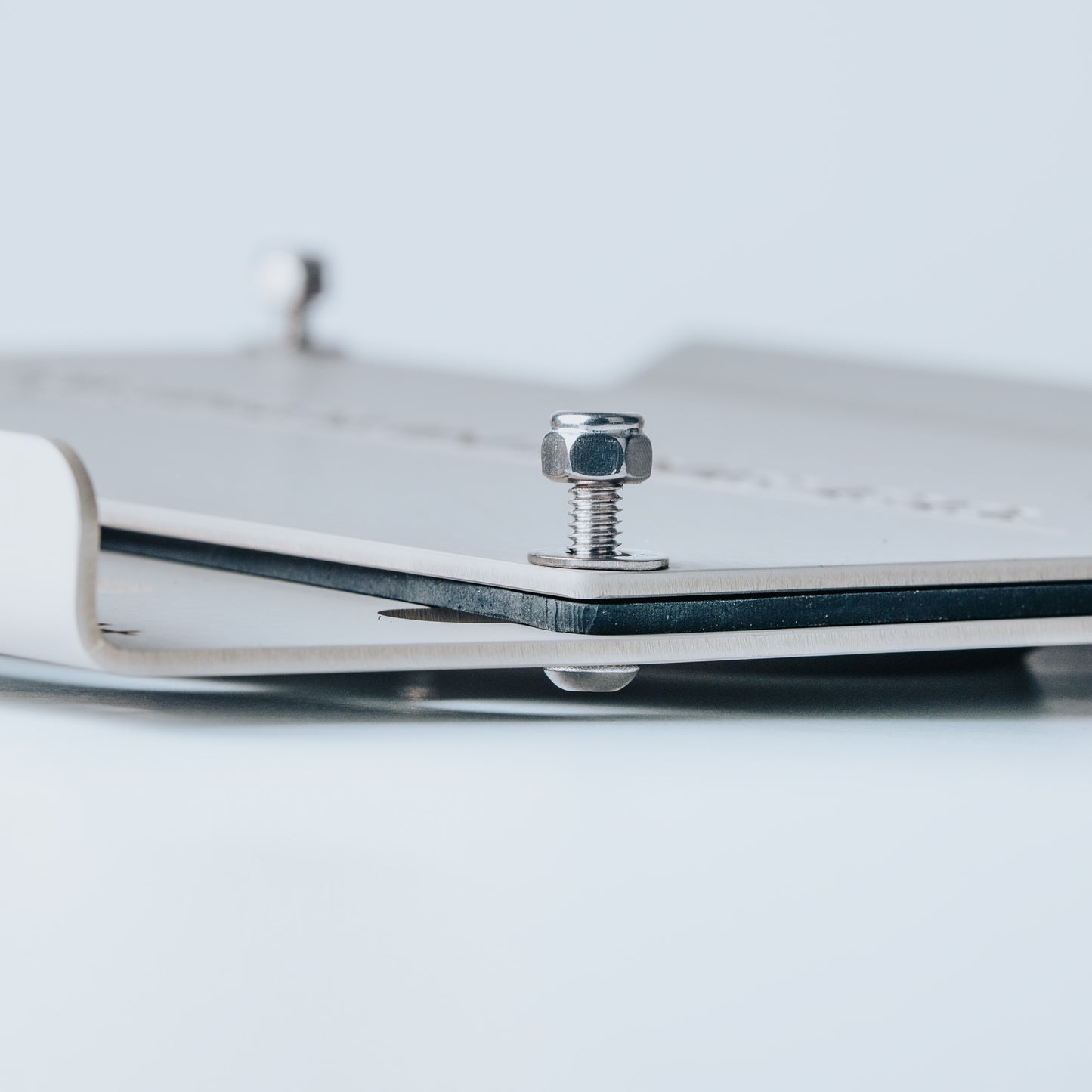

Internal Plate/Gasket: This internal plate that goes inside of your case, bag, etc… It provides a strong internal aluminum base, gives the gasket a firm surface to seal against, as well as an area to potentially build off of for any creative or custom applications.

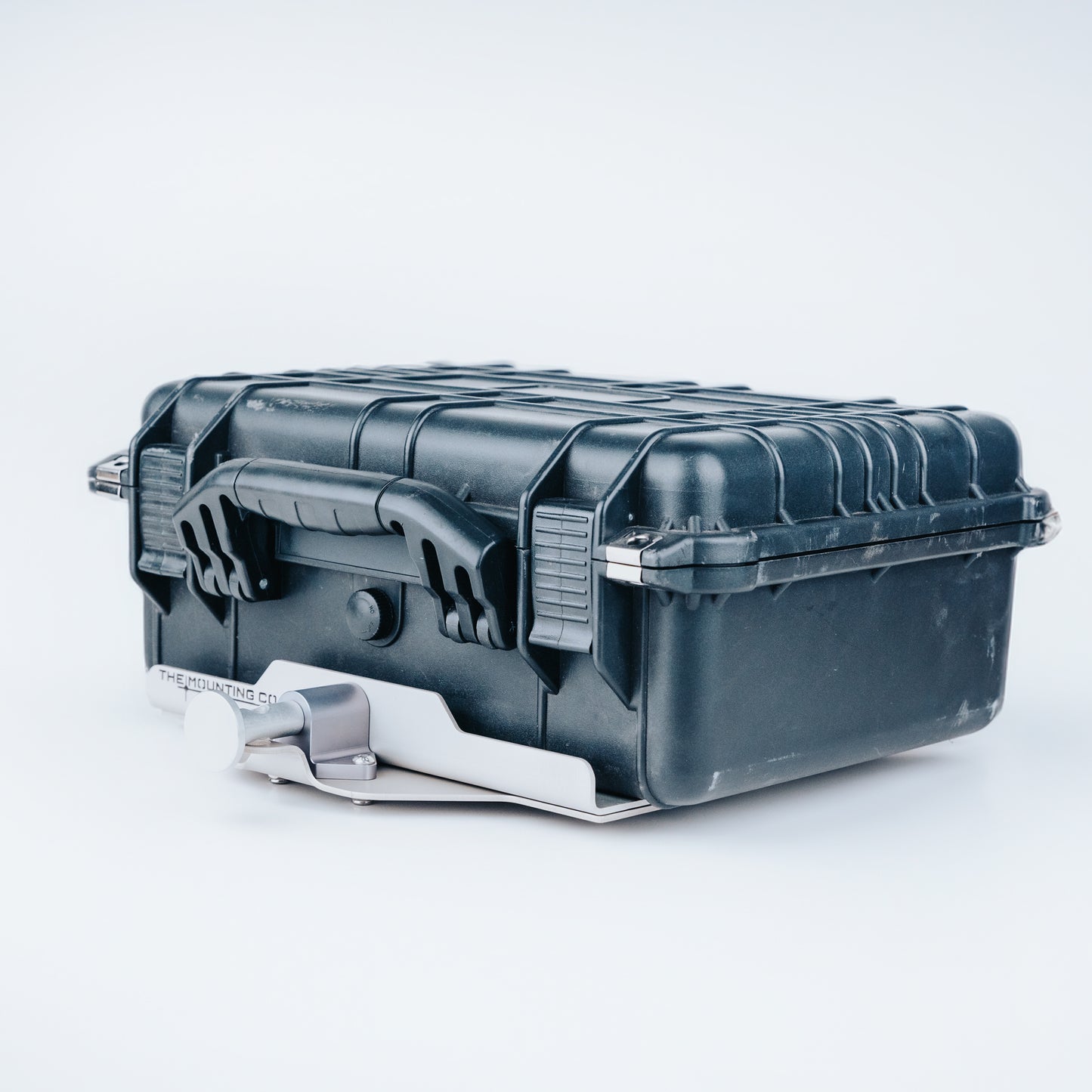

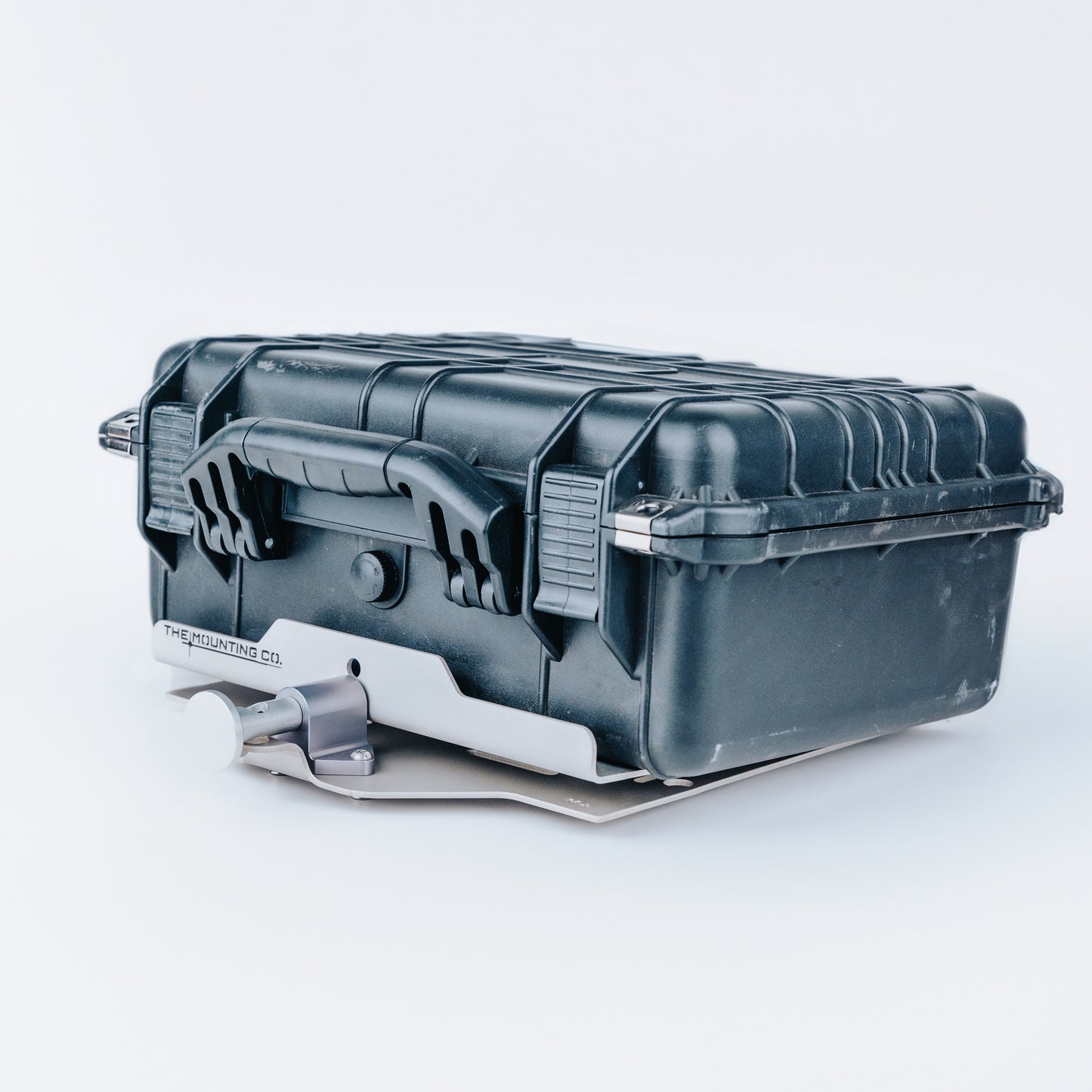

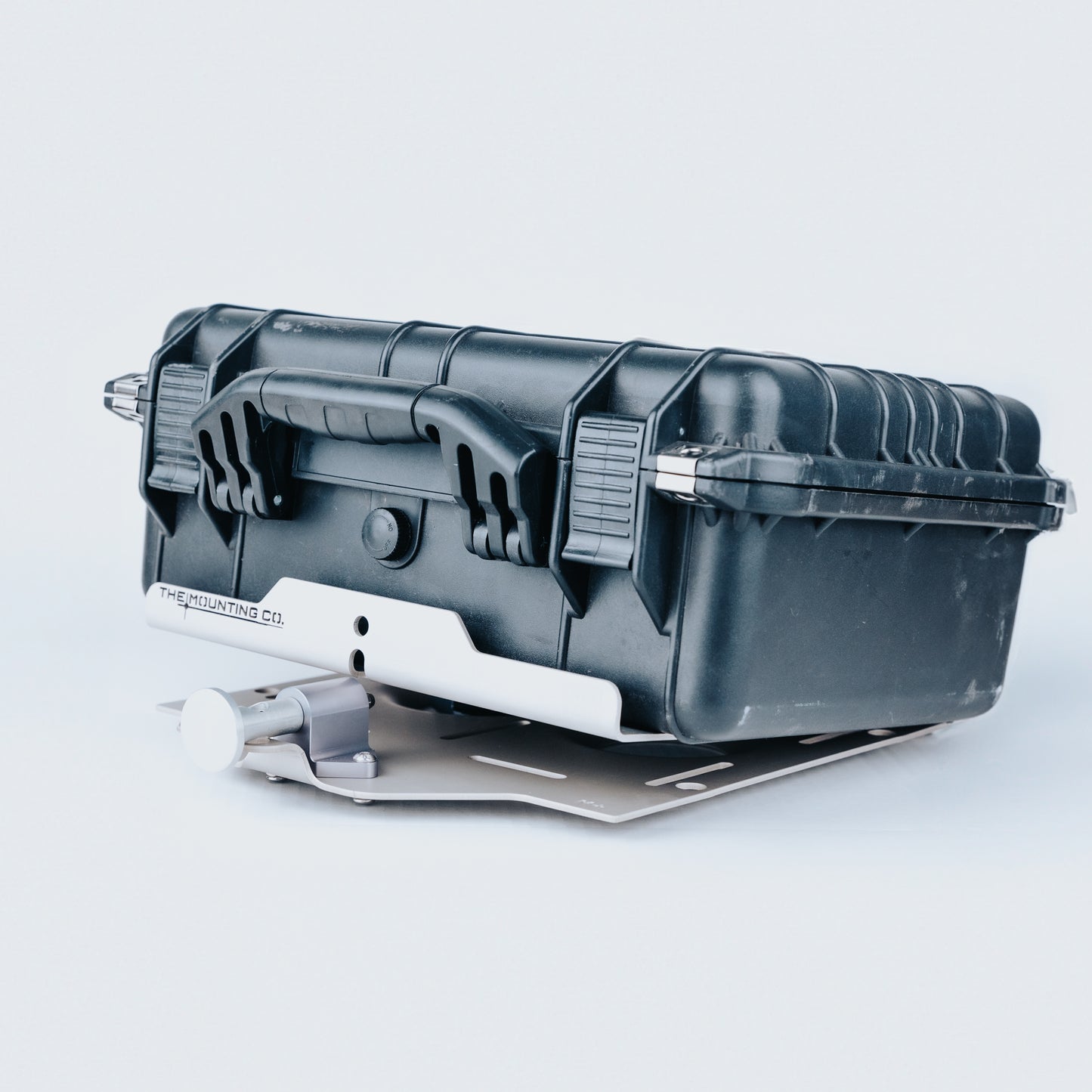

You will need to finalize your choice of gear storage, we recommend doing this first. Once that is completed, it's time to measure… For example purposes, we will use a case.
-Flip your Case upside down.
-Measure externally on the bottom from Handle to Hinge.
-Be aware of any Protrusions
-Determine the physical dimension of the bottom side. Example: Case measurement is 13 ¾” then it will fit a Large Mount 14”
Pro Tips: Different cases have solid plastic protrusions; these can be trimmed or sanded down, providing a tighter and slimmer fitting Mount Plate to the Case.
A general rule we have noticed, most external measurements provided on case dimensions, the Mount will end up being 1 ¼” smaller than the dimension.
For example, Pelican Air 1555 Exterior (L×W×D) 24.76 x 15.46 x 8.24 in (62.9 x 39.3 x 20.9 cm) The handle to hinge measurement is 15.46”, however the physical dimension of the bottom is 13.9” and fits perfectly on our Large Mount 14”

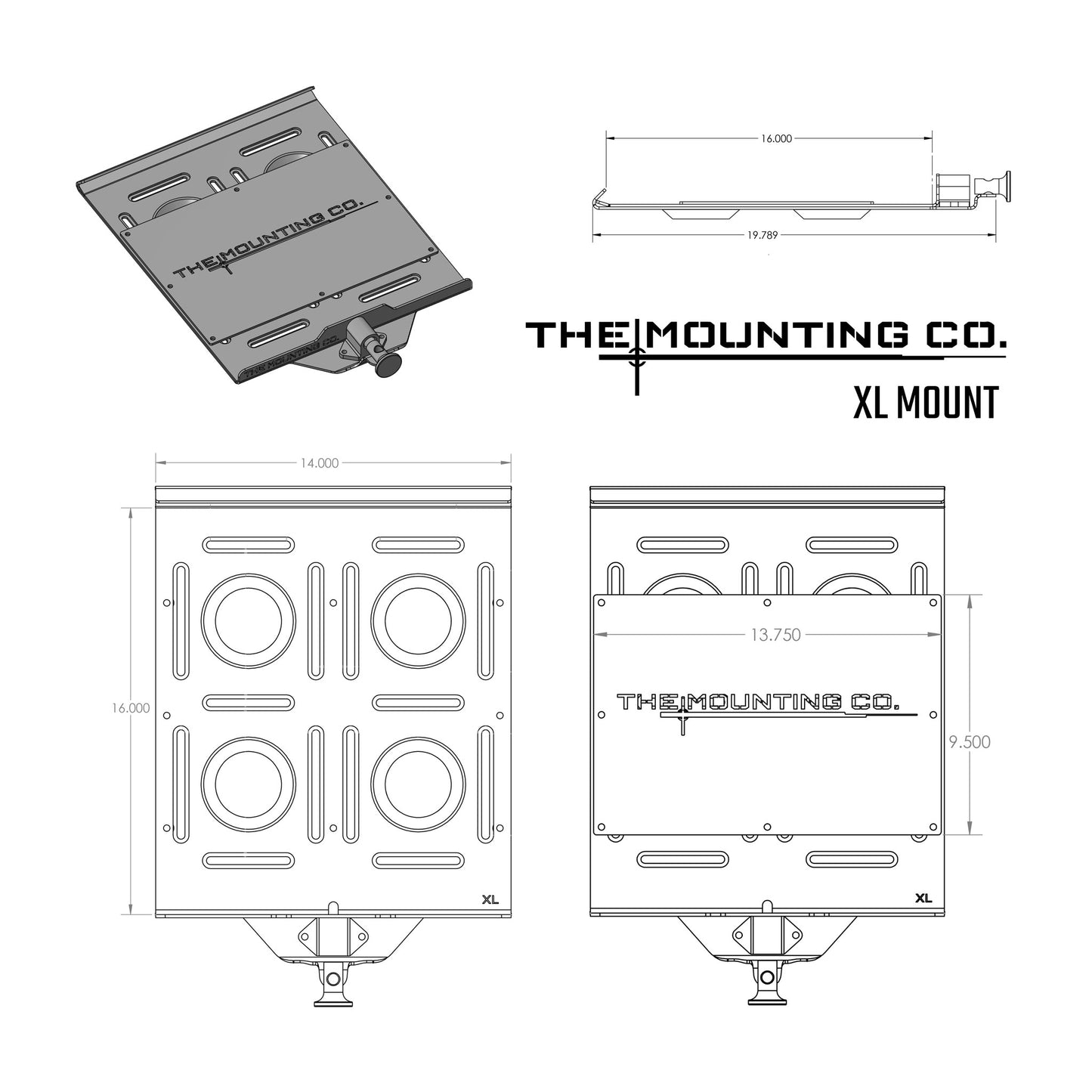

Detailed dimensions are provided in each of the Mounts Photo sections. As always, take your time, double-check, and never hesitate to shoot us a quick message to get clarity.
WHAT TOOLS DO I NEED?
- Measuring Tape
- Drill
- ¼” Drill Bit
- 5/32” Allen
- 7/16” Wrench or Socket/Ratchet
- 3/16” Allen
- ½” Wrench or Socket/Ratchet
- Patience
- Attention to Detail
Pro Tip: Utilize a Stepbit to drill; this provides a smoother hole and deburrs the edge as well.
Features of the Mounts
Customer Reviews
We love our new mounts in our shop! Quick grab and go for our materials and tools. Easy to transfer from the shop into our trailer. Also have several of these mounts on my Mojave Gladiator.
Thanks for the help Connor!
We live in a bigger city where things are taken off of overlanding vehicles daily. So, we wanted something that was not only sturdy & lockable, but removable also. We paired the XL mount with Eylar 44" overland low-profile cases & they fit perfectly. Been on thousands of miles since installing with no issues. Couldn't be happier with them!
This is literally the best mount available. No, it's not the cheapest, but it's dependable and reliable, which is exactly what you want. These mounts were pretty simple to install and give my setup an insane amount of flexibility. Rather than standing on my tip toes trying to dig through my cargo box on my roof rack, I can now take the whole box off the rack in seconds and work out of it. Love this product!
Everyone who see's my mount makes a comment about how cool it is and refined it is. I got mine powdercoated to match a few of my other accents around the vehicle and the end result is perfect. I used an XL to mount a Pelican case to my roof rack to carry camping or recovery gear. Having a quick release mount makes it so convenient to remove while driving around town and throw it up there for a weekend trip. Will be purchasing more in the future as needed!
The quality and craftsmanship of this mount is amazing. You can tell that no expense was spared.
