XL Mount

$319.00
(5.0)
Description

Stuck in the snow? The mud? Racing in Baja? Even worse yet, a firefight?

Every second counts.
Efficiency and focus are paramount…
Quickly access and use your gear without unnecessary movements or confusion.
Our mounts are designed for durability and quick deployment, ensuring you can rely on them and stay focused on what's important.

The XL Mount of our universal quick release line up. Designed for XL sized gear, XL hard cases, Rifles cases, XL bags, etc.

  • Aircraft grade aluminum
  • Titanium pin
  • Lockable
  • 316 Stainless hardware
  • Standard: Type III Hard Anodized
  • Black: Powdercoated
  • Patented self aligning design
  • Patented removable and rebuildable pin and block
  • 100% Designed and manufactured in Phoenix, AZ USA

XL Mount Dimensions: 14"x16"



Current lead time 2-3 weeks.

COLOR
STANDARD
You may also like...

EASY ACCESS TO YOUR GEAR

With our patented, secure, self-aligning design, you can be sure that you can access your gear when you need to and keep it secure when you don't.

XL MOUNT

THIS MOUNT WILL FIT

Pelican Protector 1700

Pelican Air 1605

Pelican Cargo BX135

Pelican Protector 1720 (plus Stabilizers)

Condition1 #1229 (plus Stabilizers)

Condition1 #2191 (plus Stabilizers)

Condition1 #2106 (plus Stabilizers)

Zarges K470-40810

Zarges K470 -40568

Frequently asked questions

WHAT CAN I MOUNT THIS ON?

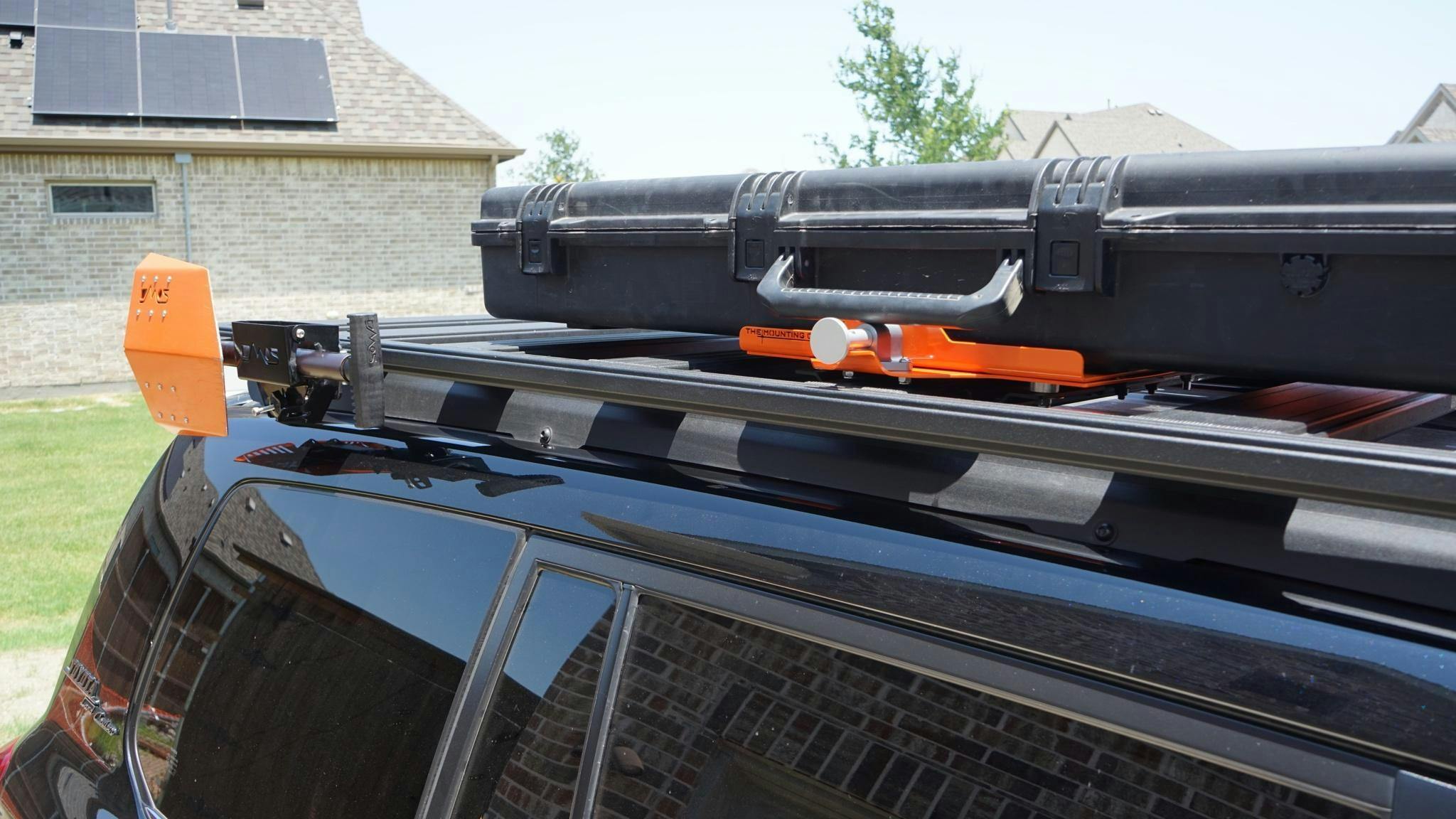

Roof racks, Bedracks, Molle Panels, Trucks, SUVs, Trophy Trucks, Boats, Snowmobiles,  Airplanes, Helicopters, Tanks…. Anything you can use your imagination on.

HOW DO I MEASURE?

Terminology we will use-

Handle to Hinge: A measurement taken externally on the bottom side of your case or gear; the measurement is taken from the Handle side (Front)  to the Hinge side (Back)

Protrusions: Not all Cases have flat surfaces externally. They have varying ridges, reinforcements, and moldings.

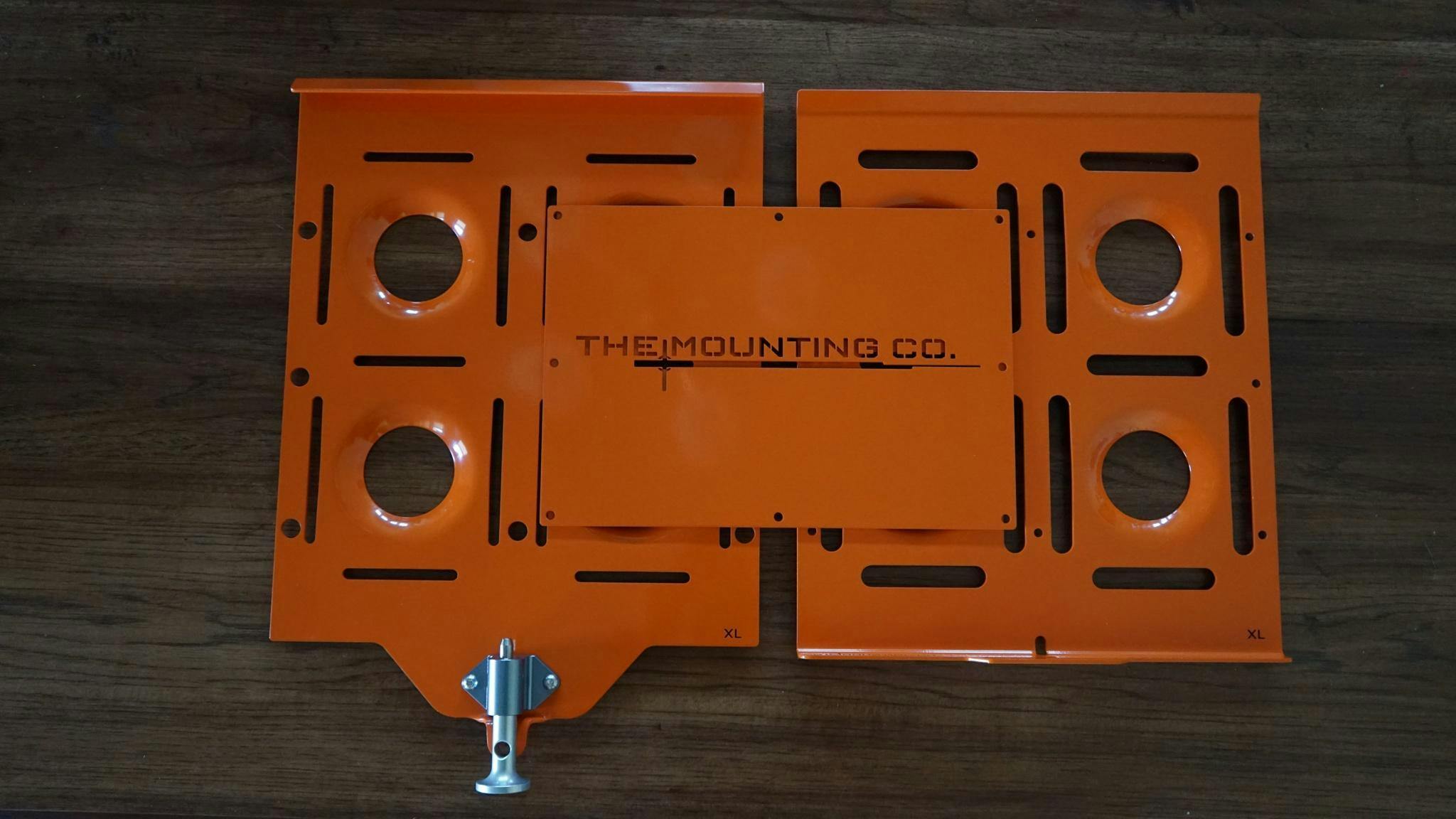

Base Plate: The “Bottom” side of the Mounts. It has the Pin Block, rear lip, and will be bolted to your vehicle, boat, race car, airplane, tank, rocket, etc…

Mount Side Plate: This is the “Top” side Plate. This is the part that has the Detent Pin Guide, Pin Hole, and Internal Plate/Gasket. It attaches to the case, bag, cooler, Starlink Antenna, or whatever else you can dream of…

Pin Block: The removable, adjustable, and mechanical part of our Mounting System.

Internal Plate/Gasket: This internal plate that goes inside of your case, bag, etc… It provides a strong internal aluminum base, gives the gasket a firm surface to seal against, as well as an area to potentially build off of for any creative or custom applications.

 You will need to finalize your choice of gear storage, we recommend doing this first. Once that is completed, it's time to measure… For example purposes, we will use a case.

-Flip your Case upside down.

-Measure externally on the bottom from Handle to Hinge.

-Be aware of any Protrusions

-Determine the physical dimension of the bottom side. Example: Case measurement is 13 ¾” then it will fit a Large Mount 14”

Pro Tips: Different cases have solid plastic protrusions; these can be trimmed or sanded down, providing a tighter and slimmer fitting Mount Plate to the Case.

A general rule we have noticed, most external measurements provided on case dimensions, the Mount will end up being 1 ¼” smaller than the dimension.

For example, Pelican Air 1555 Exterior (L×W×D) 24.76 x 15.46 x 8.24 in (62.9 x 39.3 x 20.9 cm) The handle to hinge measurement is 15.46”, however the physical dimension of the bottom is 13.9” and fits perfectly on our Large Mount 14”

Detailed dimensions are provided in each of the Mounts Photo sections. As always, take your time, double-check, and never hesitate to shoot us a quick message to get clarity.

HOW TO MEASURE

WHAT TOOLS DO I NEED?
  • Measuring Tape
  • Drill
  • ¼” Drill Bit
  • 5/32” Allen
  • 7/16” Wrench or Socket/Ratchet
  • 3/16” Allen
  • ½” Wrench or Socket/Ratchet
  • Patience
  • Attention to Detail

Pro Tip: Utilize a Stepbit to drill; this provides a smoother hole and deburrs the edge as well.
